W02-358-3001 Firestone Sleeve Type Air Spring Style 1M1A-0 Replacement Air Actuator

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

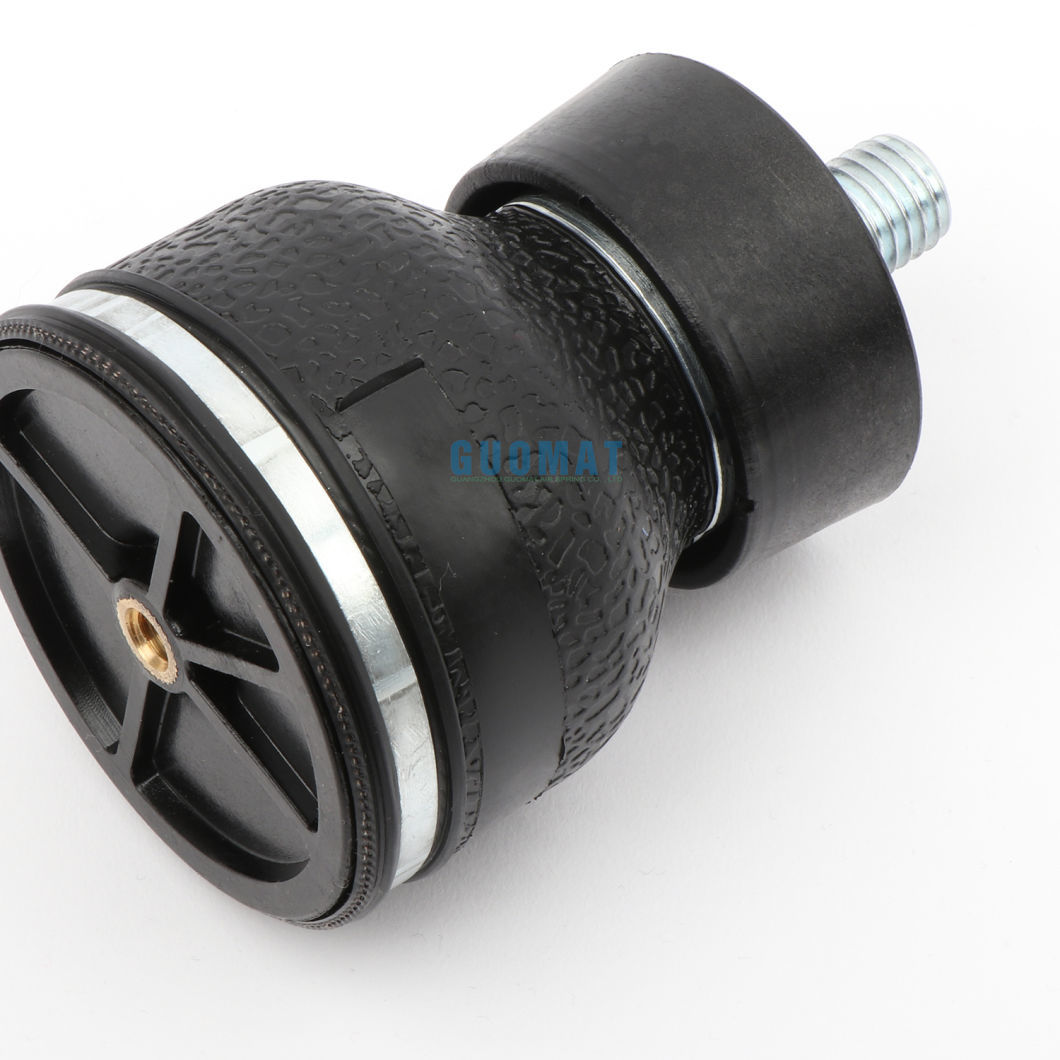

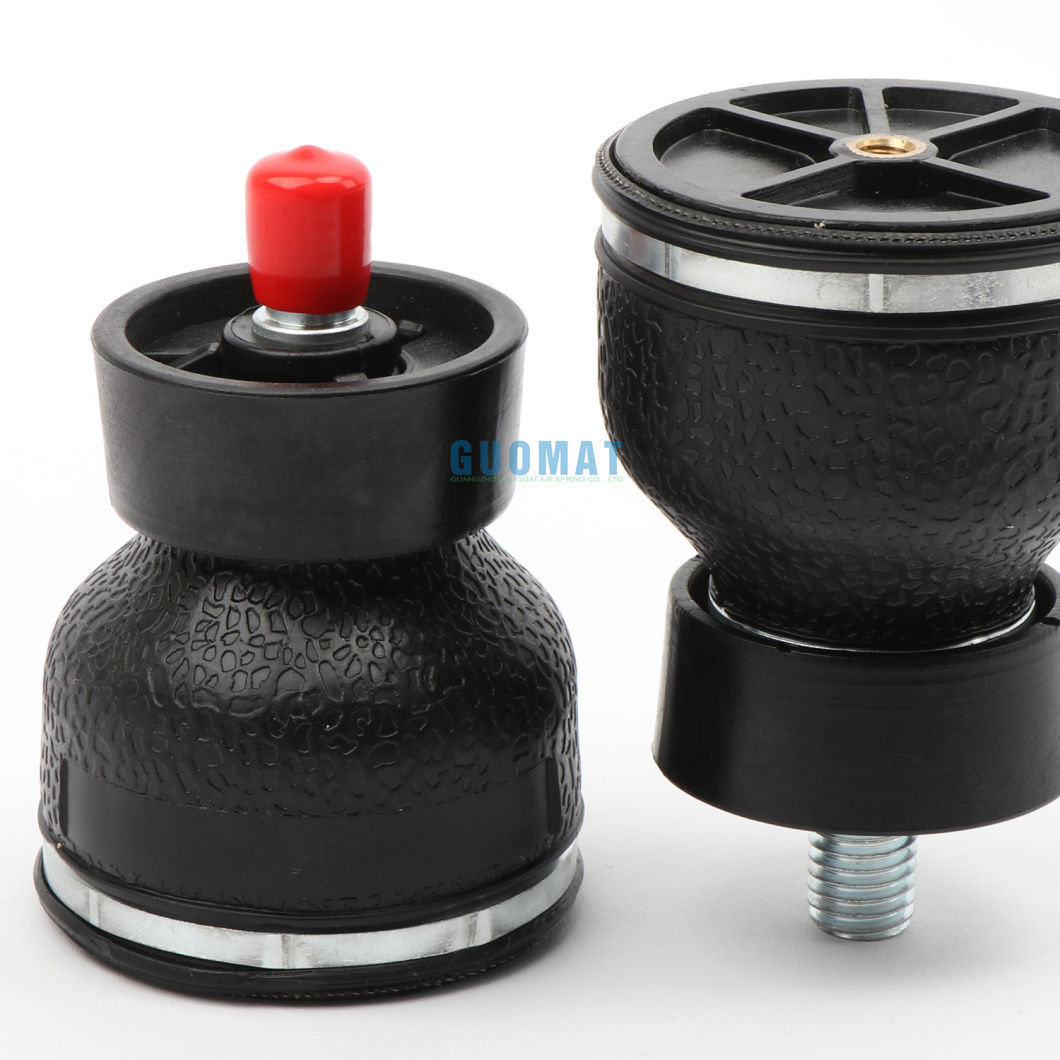

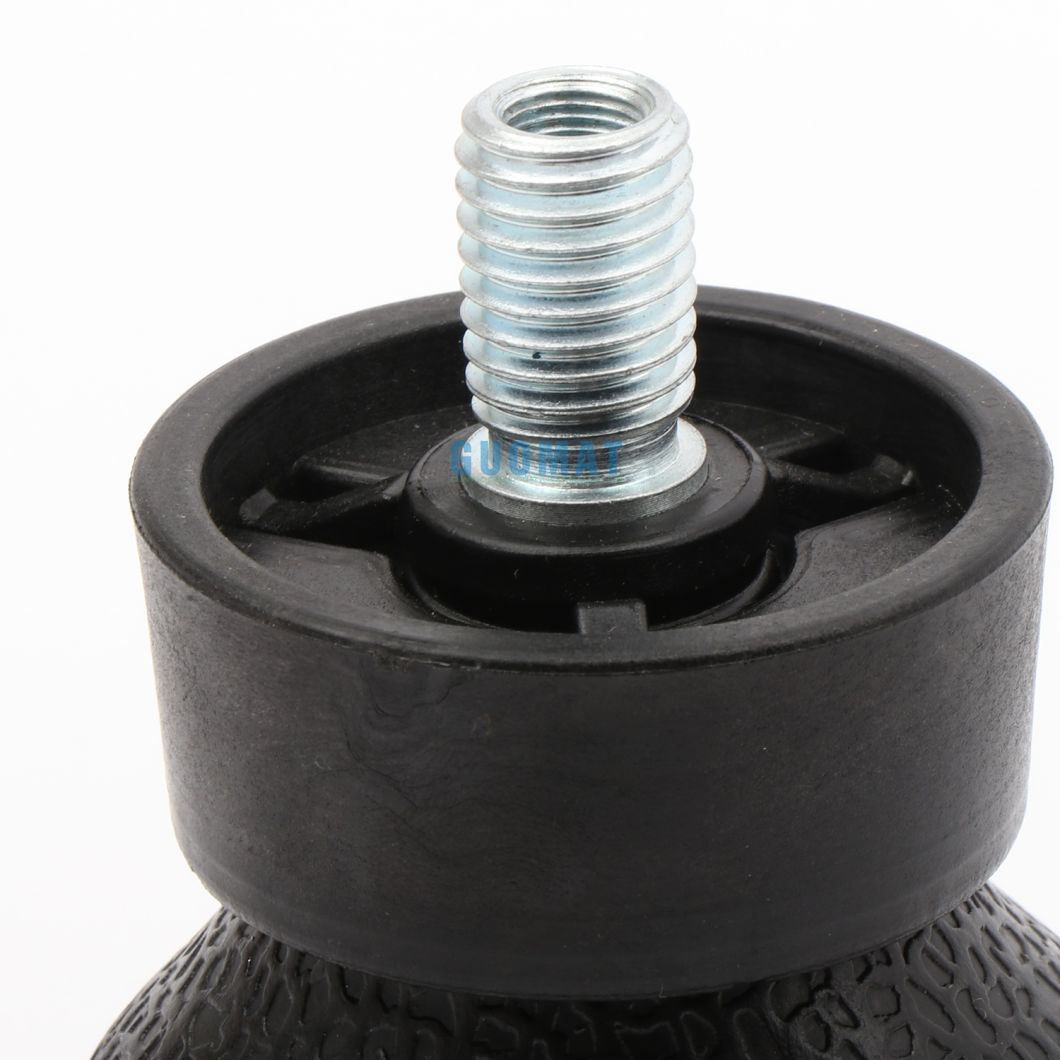

W02-358-3001 Firestone Sleeve Type Air Spring Style 1M1A-0 Replacement Air Actuator

Certification : ISO/Ts16949, ISO9001

Brand Name : GUOMAT

Model Number : G3001

Place of Origin : Guangzhou,China

MOQ : 6pcs

Price : $29.9-39.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000 Per Week

Delivery Time : 5-8 Working Days

Packaging Details : Carton packaging or packaging according to customer requirements

Material : Rubber and Iron

OEM : Yes

N.W. : 0.26 Kg

Pressure Ability : 0.2-0.8 M PA

Air Inlet : G1/8

Top Plate Hole/Stud : 3/8-16unc

Bottom Plate Dia : 60.96 mm

Type : Gas-Filled

Contact Now

W02-358-3001 Firestone Sleeve Type Air Spring Style 1M1A-0 Replacement Air Actuator

Product Description


Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Product Name: Sleeve Air Spring

Warranty: 12 Months

Material: Rubber+Steel

GUOMAT NO.: G3001

Type: Gas Filled

Place of Origin: Guangzhou,China
Certification: ISO/TS16949:2009
Packing: Neutral Packing
MOQ : 1 Pcs
Quality: High-Quality
Position: Auto/Truck parts
Application: Auto Suspension Systems

OEM Number/Cross Reference Number

Firestone Style Number: 1M1A-0

Firestone Part Number: W023583001

Firestone Part Number: W02 358 3001

Firestone Part Number: W02-358-3001

Firestone Part Number: WO23583001

Firestone Part Number: WO2 358 3001

Firestone Part Number: WO2-358-3001

Detail Firestone Assembly Number
Style 1M1A-0 Blind nut,1/8NPT,Plastic stud W02-358-3000
Blind nut,1/8NPT,brass stud W02-358-3001
Teo Ply Bellows Blind nut,1/8NPT,brass stud,stainless steel ring W02-358-3005

Assembly Height: 2.0 inch

Volume@60PSIG: 6in3

@20PSIG: 110

@40PSIG: 230

@60PSIG: 340

@80PSIG: 460

@100PSIG: 580


GUOMAT air spring solemn commitment to the customer:

1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.


Packing List of G3001 Air Spring :

Description PCS

Net

Weight

Package

Weight

Gross

Weight

Length
(cm)
Width
(cm)
Height
(cm)
Measurememt
(cbm)
Air Suspension 1 0.6kg 0.4kg 1.0kg 12 9.2 9.2 0.100102
Shipping Terms By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms T/T, Western Union,Paypal and Others
