| Parameters | Details |

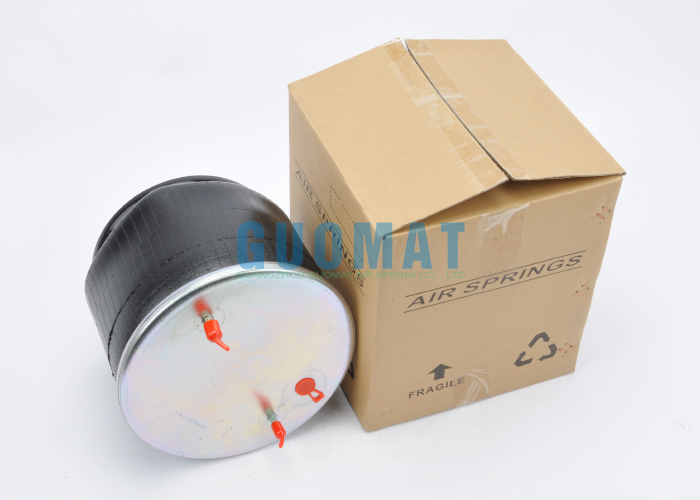

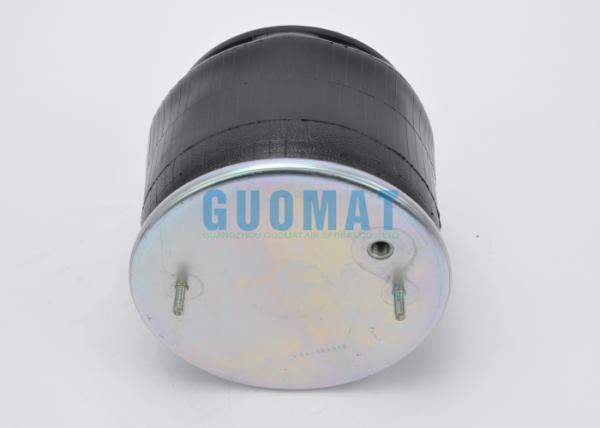

| Product Name | Air Spring |
| Model No. | 1T6022 |
| Material | Rubber+steel |
| Application | Volvo |
| OEM | High Quality |
OEM Number/Cross Reference Number
Contitech Number: 6620 N P02 / 6620N P02 / 6620NP02
Goodyear Number: 1R12-825 / 1R 12-825 / 1R12 825 / 1R12825
Goodyear Number: 566243524 / 566 24 3 524 / 566 24 3 524
DT Number: 2.61032
PHOENIX Number: 1 DF 25 C-1
PRIME-RIDE Number: 1R12-823
PRIME-RIDE Number: 1R12-825
Volvo Number: 20703452 / 20 703 452
Volvo Number: 21057939 / 21 057 939
Volvo Number: 21013010 / 21 013 010
Volvo Number: 21513836 / 21 513 836
Technical Data
Length: 244mm
Outer diameter: 260mm
Diameter: 325mm
Thread size 1: M10 x 1.5
Thread size 2: M16 x 1.5
Guarantee: 1 years guarantee
Net weight: 8687g
Functions of Volvo Truck Suspension Airbags
| Shock Absorption and Comfort | Compressed air is used to cushion road vibrations, reducing driver fatigue and cargo damage. |
| Automatic Leveling | Automatically adjusts airbag pressure according to load weight to keep the vehicle body level. |
| Height Adjustment | The driver can adjust the chassis height through the control system to facilitate loading and unloading of cargo or adapt to different road conditions. |
| Protect the chassis | Reduce the impact of bumps on the frame and components, and extend service life |
Common Faults and Maintenance
Airbag leakage: caused by aging, cracks or poor sealing of rubber, which needs to be replaced in time.
Height valve failure: the vehicle body cannot remain level, and the valve needs to be cleaned or replaced.
Pipeline blockage/leakage: check the air pipe connection point and dryer.
Abnormal noise or tilt: it may be uneven airbag pressure or wear of mechanical parts.
Maintenance Suggestions
Regularly check whether the airbag surface is cracked or worn.
Keep the air dry (to prevent moisture from corroding the pipeline).
Replace aging parts according to the manual and avoid overloading.
