Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine

Certification : ISO/Ts16949:2009

Brand Name : GUOMAT

Model Number : 2B7070

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD59.9-69.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Pressure Ability : 0.2-0.8 M PA

Air Inlet : 1/4NPTF

Trademark : GUOMAT

Origin : Guangzhou, China

HS Code : 8708809000

OEM : Contitech FD70-13

Natural Height : 162mm

Other Name : Contitech Helper Spring

Contact Now

Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine

OEM NO.

Contitech FD 70-13
Contitech FD 70 13
Contitech FD70-13
Contitech FD70 13
Contitech FD7013
Contitech FD 7013

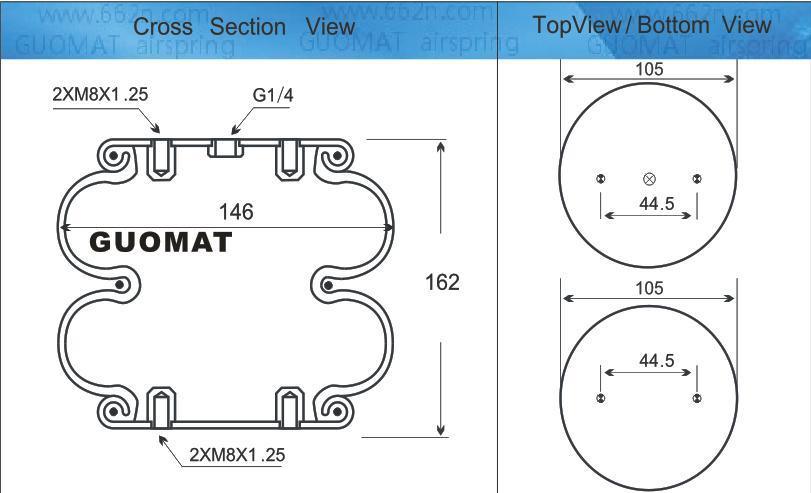

2B70-13 Rubber Air Spring Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: 2 x M8X1.25

Top plate screw center distance: 44.5 mm

2. Bottom cover plate screw (nut) teeth: 2 xM8X1.25

Bottom plate screw center distance : 44.5 mm
2. Air hole/air inlet/air fitting air hole/air inlet: G1/4
3. Top plate diameter (width): 105 mm, bottom cover diameter (width): 105 mm bell-shaped rubber bellows rubber bellows diameter: 146 mm

4. Bumper block/bumper block without bumper
5. Belt loop/belt loop with belt loop: with one belt loop

6. Net Weight: 1.6

7. Gross Weight: 2.0

The competitive advantage of the product

1. The product quality is excellent, natural rubber imported from Thailand, combined with German technology.

2. For products with the same price in the market, Gaomat strives for better quality. For products of the same quality, Gaomat strives for lower prices.
3. More than ten years of production technology, products cover the world.

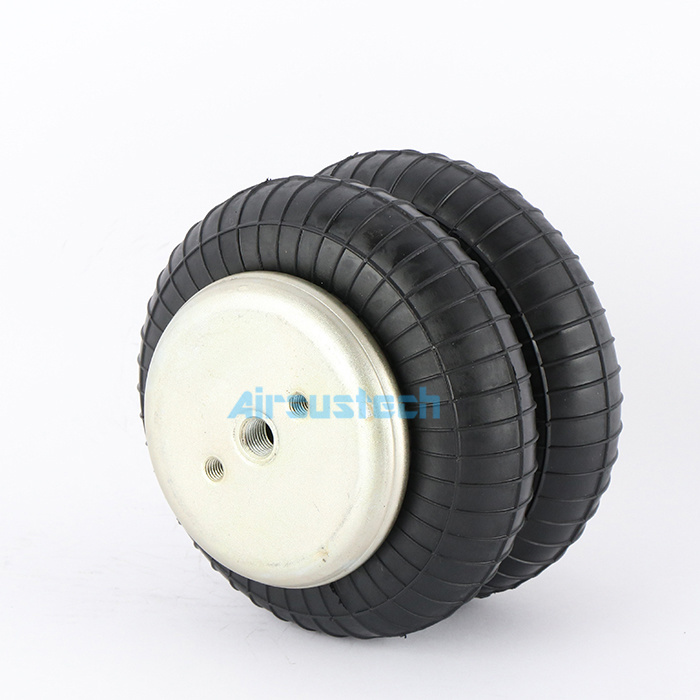

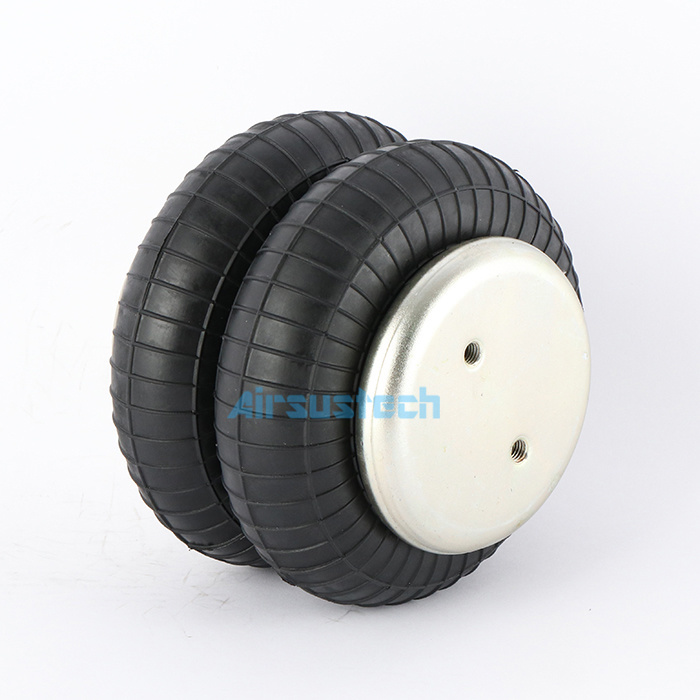

The picture

Rubber Air Contitech Spring FD70-13 Style Bellows For Lifted MachineRubber Air Contitech Spring FD70-13 Style Bellows For Lifted MachineRubber Air Contitech Spring FD70-13 Style Bellows For Lifted Machine
