W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson

GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

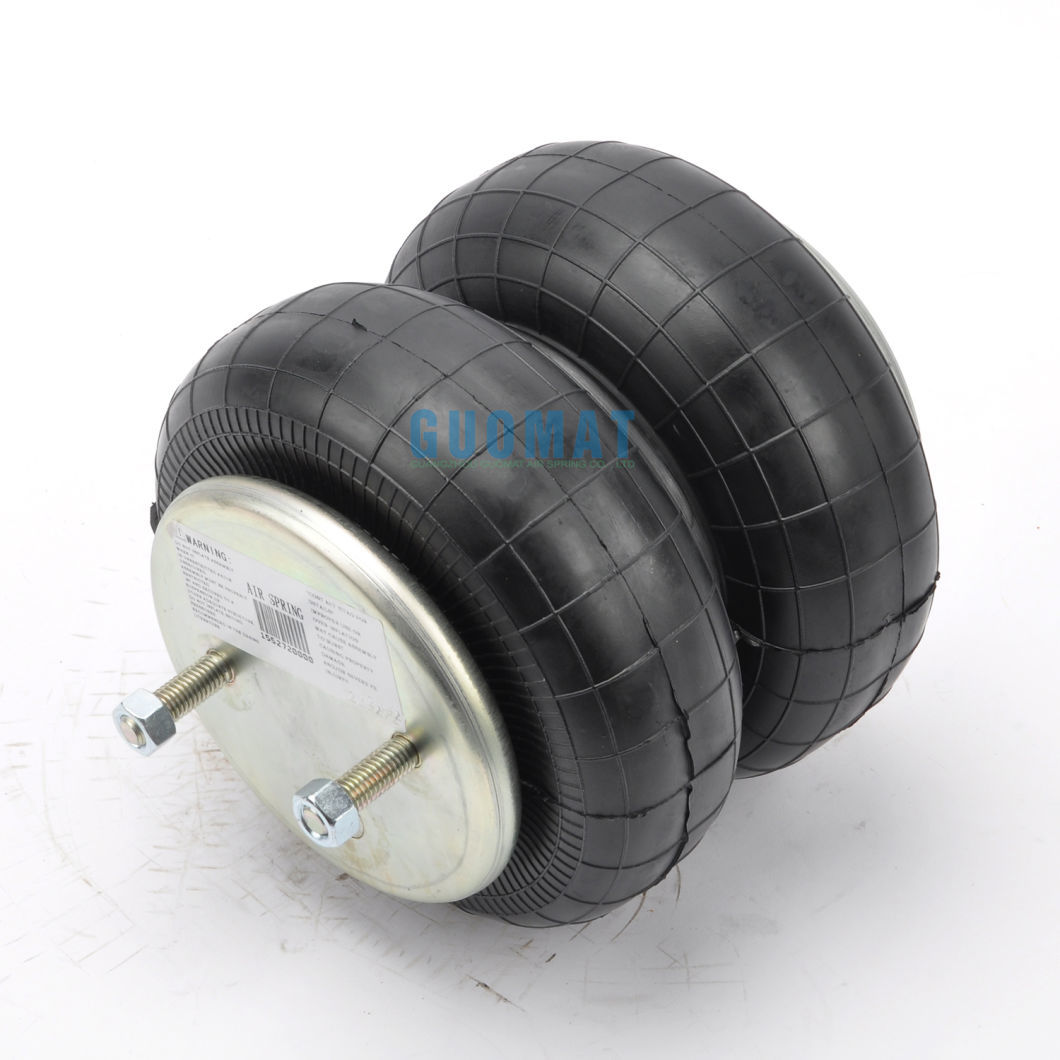

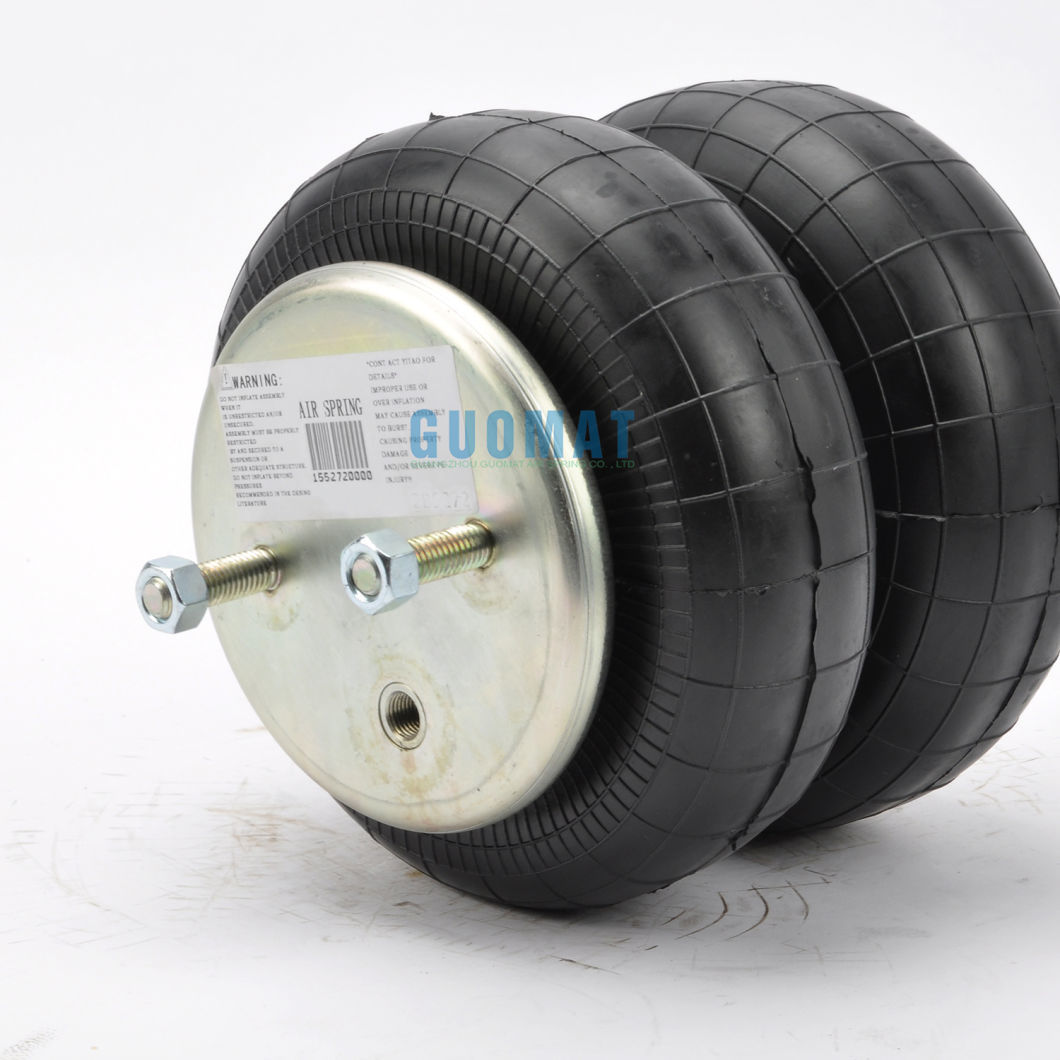

W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson

Brand Name : GUOMAT

Model Number : 2B6905

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD69.9-79.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Spring Type : Rubber Air Spring

Car Make : Hendrickson

Condition : Brand-New

Function : Reduce Shock

Quality : 100% Tested

Warranty : 1 Year

Type : Gas-Filled

Goodyear : 2B9-206

Contact Now

W01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson

Product Information

Air bag is a rubber and fabric bladder that holds air pressure to support a load and isolate passengers and cargo from the shock of motion caused by road irregularities.

As the air pressure increases,the air spring can support more load while the spring rate increases.The larger the air spring,the greater the maximum loat it can support.

Product Name Air Suspension Kit
Working Temperature -40ºC bis +70ºC

Refer Numbers

Firestone:W01-358-6905
Contitech:FD200-19 315
Goodyear:2B9-206
Taurus:KF218-6905
Hendrickson:S3518/S5270
Ridewell:1003586905C
EZ Ride:8030120
Watson&Chalin:AS-0020
Failure Testing ≥3 millions

Technical data

Top Cover Plate Diameter:160mm
Bottom Cover Plate Diameter:160mm
Gas Hole / Air inlet:1/4NPTF
Rubber Bellows MAX Diameter:251.5mm
The Working Stroke:MAX 274 mm to MIN 95 mm
Top Cover Plate Screw (Nut) Tooth:2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth:2X3/8-16UNC
Screw Center Distance of Top Cover Plate:89mm
Screw Center Distance of Bottom Cover Plate:89mm
Screw And Gas Hole Distance of Top Cover Plate:44.5mm

Notice

These air suspension bags are aftermarket ones.They will replace the original air spring bags.

--Please double check the picture and drawing carefully before purchasing to ensure you will get the right struts.

--Instruction isn't included.Professional installation is recommended.

--Contact us please for whatever we can help


Features
* Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
* Built to strict quality control standards.
* Designed for Comfort Suspension.
* Bring better handling and ride comfort.

More Recommend Products

W01-095-0021 W01-358-7598 W01-358-9079 W01-681-7368 W01-095-0063 W01-358-7667 W01-358-9082
W01-681-9091 W01-095-0087 W01-358-7725 W01-358-9083 W01-681-9098
W01-095-0118 W01-358-7731 W01-358-9084 W01-681-9242 W01-095-0189 W01-358-7781 W01-358-9089 W01-968-6286 W01-095-0190 W01-358-7788 W01-358-9092 W01-F79-7349
W01-095-0191 W01-358-7795 W01-358-9093 W01-M58-0736 W01-095-0195 W01-358-7808 W01-358-9096 W01-M58-0749 W01-095-0197 W01-358-7892 W01-358-9101 W01-M58-0756
W01-095-0198 W01-358-7897 W01-358-9104 W01-M58-0775 W01-095-0204 W01-358-7994 W01-358-9105 W01-M58-0776 W01-095-0205

Advantages

1.Excellent materials

2.Effective shock

3.In situ installation

4.Comfortable and stable

5.Long life

6.Slove the abnormal noise

W01-358-6905 American Truck Suspension Air Spring Contitech For HendricksonW01-358-6905 American Truck Suspension Air Spring Contitech For HendricksonW01-358-6905 American Truck Suspension Air Spring Contitech For HendricksonW01-358-6905 American Truck Suspension Air Spring Contitech For HendricksonW01-358-6905 American Truck Suspension Air Spring Contitech For Hendrickson
