Firestone Air Springs W013587808 Style NO. 313 Triangle 6319 / 4336 Air Bag Suspension
OEM Original Equipment Manufacturer:
Product Specs for Firestone Air Spring W013587808
Technical Specs: Firestone Air Spring W01-358-7808
Compressed Height: 4.00
Top Plate Number:3131 or 3134
Top Plate Width:11.31
Piston Number:3130
Piston Width:11.31
Firestone Air Spring Bellows Number:313
Goodyear Part Number:3B14-354 /3B14 354
Goodyear Bellows Number:578-93-3-350 /578 93 3 350 / 578933350
Triangle Part Number:4336
Triangle Bellows Number:6319
Ridewell Number:1003587808C
EZ Ride Number8030170
Note:PEERLESS 0550-00030
UPC767555005538
MPNW013587808
Technical Parameters of 3B7808

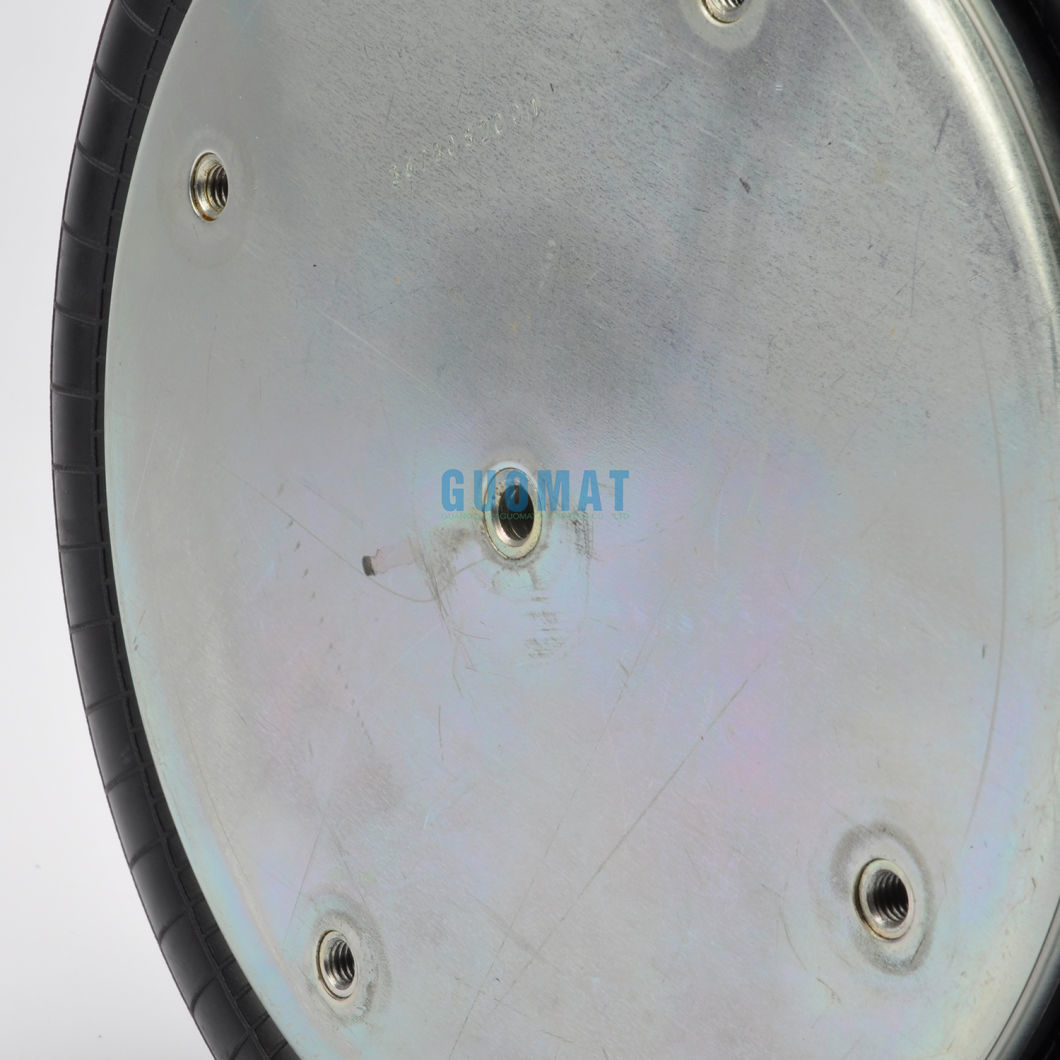

Top Cover Plate Diameter 289 mm
Bottom Cover Plate Diameter 289 mm
Screw Center Distance 158.8 mm
Distance Gas Hole Between Nut 79.4 mm

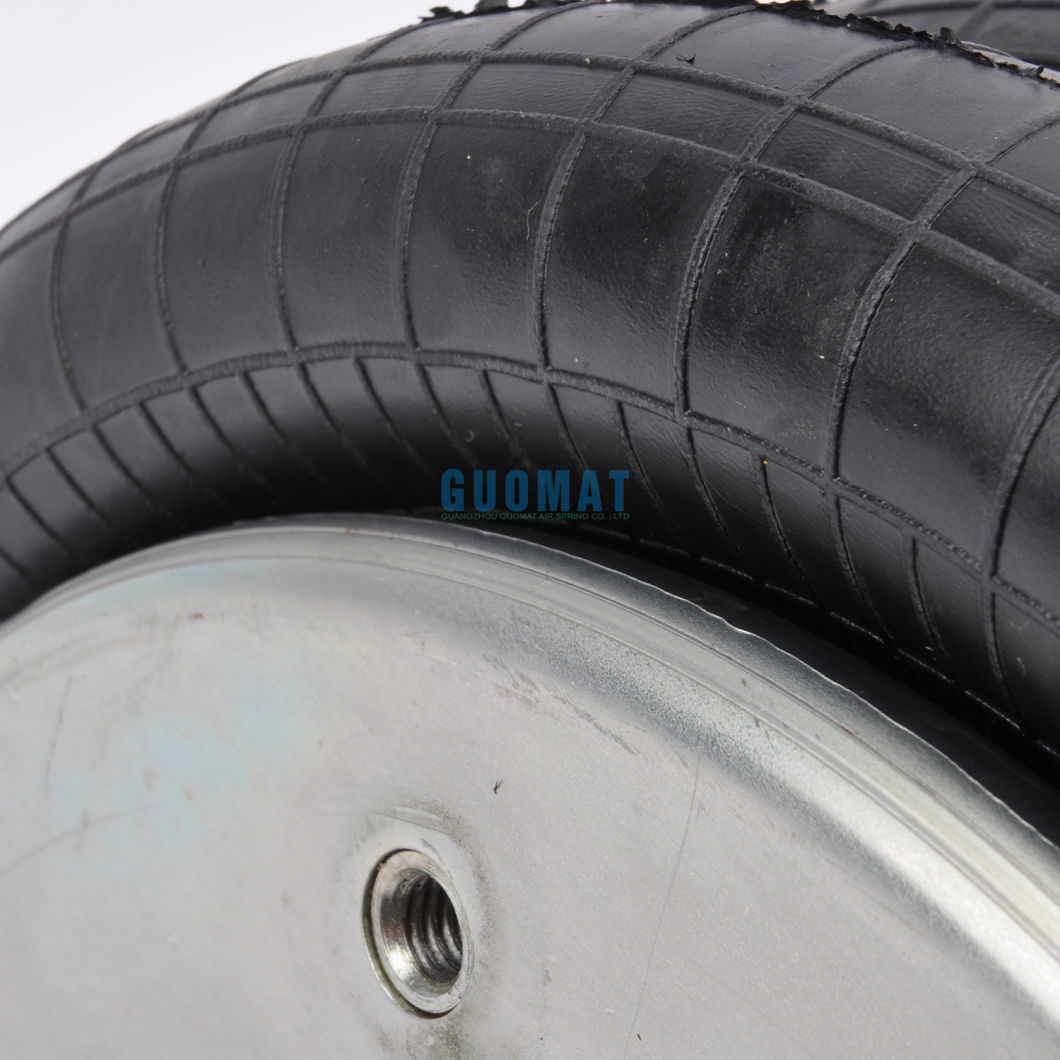

Gas Hole 1/4NPTF in the middle of the Top Cover Plate
Screw (Nut) Tooth 2pcsX3/8-16UNC

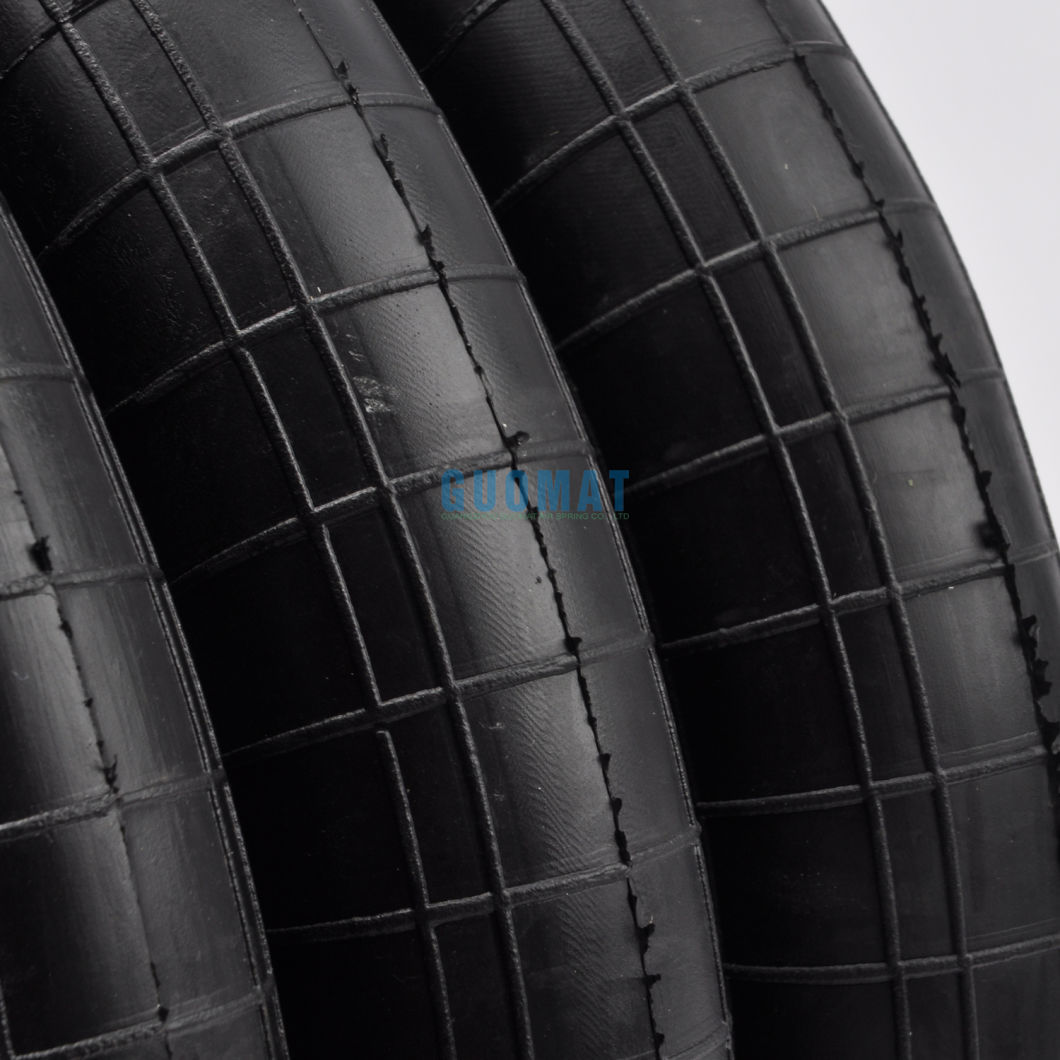

Rubber Bellows Natural diameter 356 mm
Rubber Bellows Natural height 282 mm
Contitech FT 530-32 336
Firestone Air SpringStyle 313
Firestone Air Spring No. W01-358-7808
FleetPride AS7808
Goodyear 3B14-354
Goodyear Flex No. 578933350
Taurus 6319
Triangle AS-4336
TRP AS78080
Automann SP3B32R-7808
The usal kinds of Double Convolution Air Springs
| Triple Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 3B33029 | FT 330-29 | 110 | 345 | 320 |
| 3B43032 | FT 430-32 | 115 | 355 | 315 |
| 3B53032 | FT 530-32 | 110 | 410 | 325 |
| 3B53035 | FT 530-35 | 115 | 430 | 395 |
| 3B96034 | FT 960-34 | 120 | 510 | 335 |
| 3B133035 | FT 1330-35 | 120 | 570 | 350 |
Air Spring Installation
- Before you start installing air springs, make sure you have all the necessary tools and equipment to perform the repair safely.
- Familiarize yourself with the suspension on which you are performing the repair by reviewing the manufacturers service guide.
- If you are in doubt about something, ask for assistance from a qualified suspension specialist, the suspension manufacturer or the air spring manufacturer; This can save you a lot of time and aggravation later in the job.
Our Advantages
- Long lasting service on almost all truck and trailer air suspensions
- Absorb road shock to help tractors and rigs last longer
- Cut down on vibration and driver fatigue
- Long, trouble free service, constant level hauling, quite cushioned ride
