6" x 1 (Al) CONTITECH FS 76-7 DI NORGREN PM/31061 Single Convoluted Air Bellow

Product Categories
GUANGZHOU GUOMAT AIR SPRING CO. , LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

6" x 1 (Al) CONTITECH FS 76-7 DI NORGREN PM/31061 Single Convoluted Air Bellow

Brand Name : GUOMAT

Model Number : 6x1

Certification : ISO/TS16949, ISO9001

Place of Origin : Guangzhou China

MOQ : 5pcs

Price : USD99.9-129.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Product Name : Single Convolution Air Actuator

Main Material : Rubber + Aluminum

Warranty : 12 Year

Material : Rubber and Steel

Connection Method : Flange Connection

Stroke : 50mm-105mm

Contitech : FS 76-7

Firestone : W01-R58-4078

Contact Now

6" x 1 (Al) CONTITECH FS 76-7 DI NORGREN PM/31061 Single Convoluted Air Bellow


Cross Reference

AIRSUSTECH No. 6x2
Dunlop 6''x2
DUNLOP 6 X 2
DUNLOP SPRINGRIDE SP 2913
DUNLOP SPRINGRIDE SP2913
Dunlop 6x2 Al
Firestone W01-R58-4078
Firestone W01 R58 4078
Firestone W01R584078
Firestone WO1-R58-4078
Firestone WO1 R58 4078
Firestone WO1R584078
Contitech FD 76-7 DI
Contitech FD 76-7 DI G 1/2 CR
Contitech FD76-7DIG1/2CR
Contitech FD76-7 DIG1/2CR
Contitech FD 76-7 DIG1/2CR
Contitech FD76-7DIG1/2CR
NORGREN PM/31061
NORGREN PM 31061
NORGREN PM31061
PARKER 9109004A


Specifications and Detailed Technical Parameters:AIRSUSTECH 6×1 air spring

Cover:Aluminum

Number of convolutions: Single convoluted

Type: bellows type industrial air spring
Port Size : G1/2; 1/2BSP
Warranty: One yea
Screws:4pcs M8
Screw center distance: 127mm
Cover plate diameter:152.5mm
Max. OD: 175mm
Min Height: 55mm
Max. Height: 110mm
Delivery time: 3 working days if we have stock
Paymemt: T/T, Western Union, Paypal or Others.

Single Convoluted Flange Air Spring

Contitech Firestone Dunlop Norgren Goodyear
Dunlop FR Dunlop UK High Temperature

Extreme

Temperature
P/N O/N P/N Style Standard Butyl Epichlore Standard Butyl Standard Butyl Epichlore
FS 76-7 DS 70216 W01-R58-4052 6X1

6''X1

SP1536

 PNP305510113 M/31061 TM/31061 EM/31061
FS 138-8 DS 66507 W01-R58-4054 8X1

8''X1

SP1537

 SP1638 SP2585 PNP305500110 M/31081 TM/31081 EM/31081
FS 210-10 DS 67404 W01-R58-4057 10X1

10''X1

SP2523

 SP2571 SP2587 A111270007 M/31101 TM/31101 EM/31101
FS 412-10 DS 67962 W01-R58-4060 12X1

12''X1

SP1677

 SP1677 SP2591 PNP305520120 M/31121 TM/31121 EM/31121

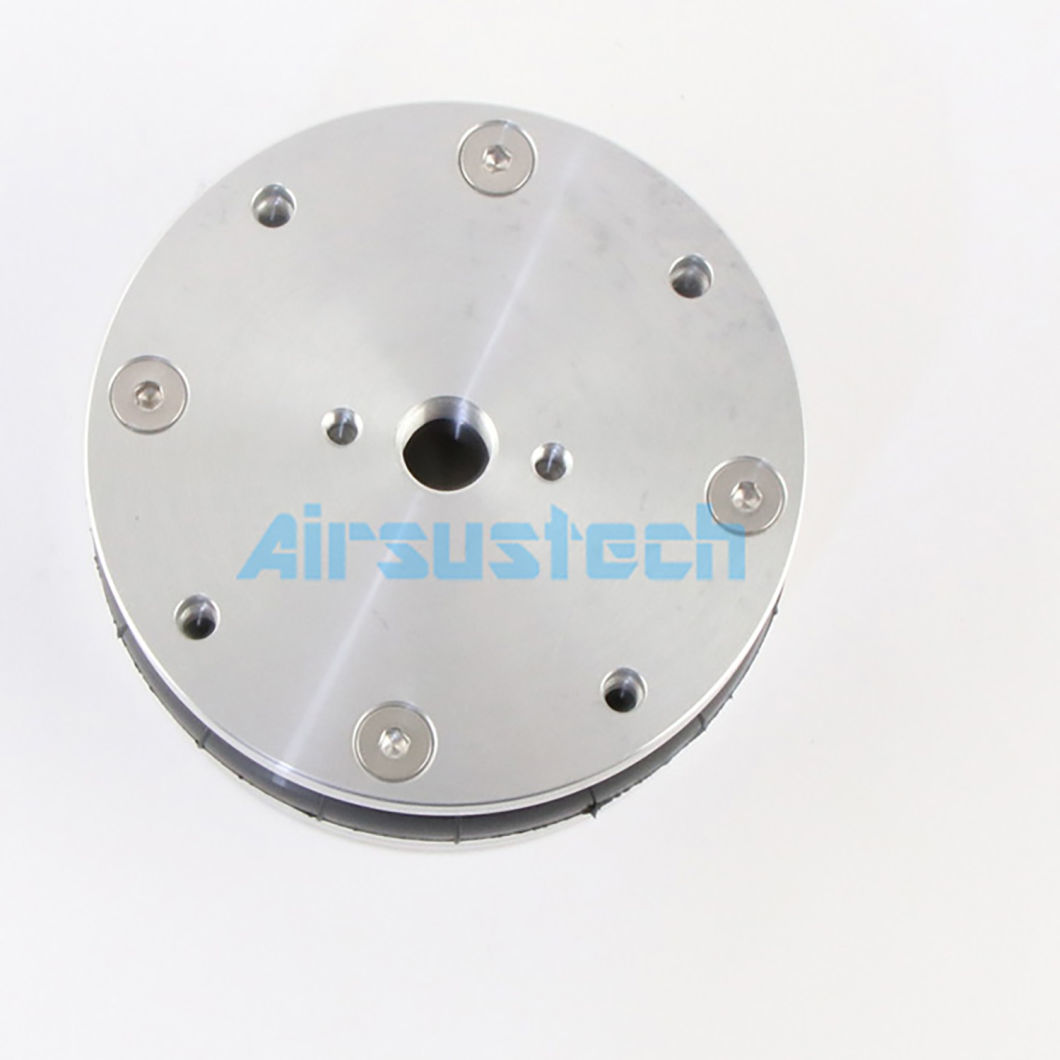

The Related Picture of 6×1 Rubber Air Shocks/Air Spring Assembly

6" x 1 (Al) CONTITECH FS 76-7 DI NORGREN PM/31061 Single Convoluted Air Bellow6" x 1 (Al) CONTITECH FS 76-7 DI NORGREN PM/31061 Single Convoluted Air Bellow
