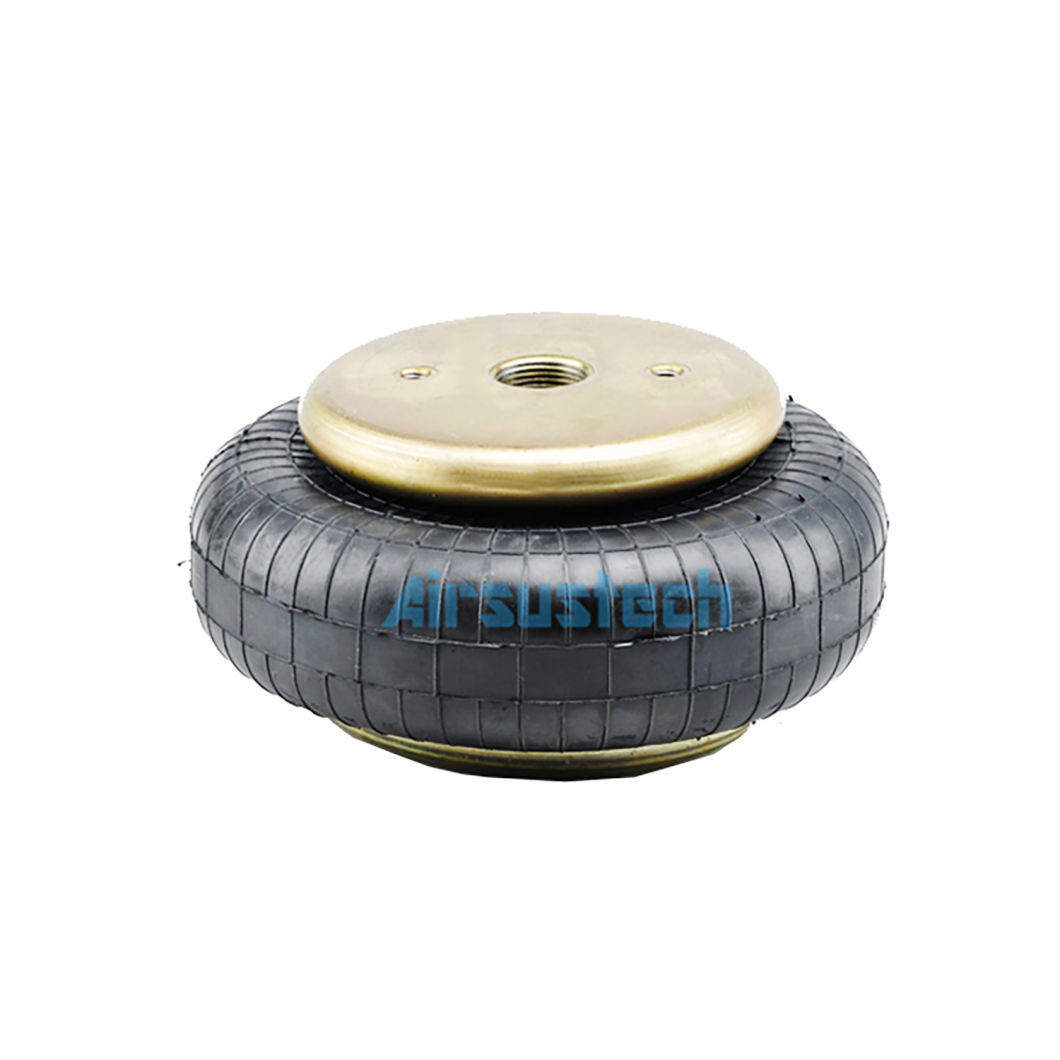

Contitech FS 120-10 Convoluted 1/4NPTF Air Spring For Expansion Chuck

Brand Name : GUOMAT

Model Number : 1B8X4

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou, China

MOQ : 5pcs

Price : USD49.9-59.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Quality : 100 % Tested

Fuction : Reduce Shock

Cross Reference : Contitech FS 120-10

After-sales Service : 12 Months

Type : Gas-Filled

Customization : Available | Customized Request

Color : Black

Item Name : Single Convoluted Air Spring

Contact Now

Contitech FS 120-10 Convoluted 1/4NPTF Air Spring For Expansion Chuck


Refer Number

Contitech: FS120-10
Contitech: FS 120-10
Contitech: FS120 10
Contitech: FS 120 10
Contitech: FS12010
Continental FS 120-10 CI 1/4 NPT
Continental FS 120-10 CI 1/4 NPT CA
Goodyear: 1B8-550
Goodyear: 1B8 550
Firestone: W01-358-7564
Firestone: W01 358 7564
Firestone: W013587564
Firestone: WO1-358-7564
Firestone: WO1 358 7564
Firestone: WO13587564
Firestone: w01-358-7564
Firestone: w01 358 7564
Firestone: w013587564


The detailed Specifications and techical data: 1B8×4

The Max. Diameter 230mm
Air hole/air inlet 1/4 NPTF
Working stroke maximum 140 mm to minimum 50 mm
Top plate screw (nut) teeth 2×3/8-16UNC
Bottom plate screw (nut) teeth 2×3/8-16UNC
Top cover diamete 135 mm
Bottom cover diameter 135mm
Screw center distance 70mm
The air hole distance between the nuts 35mm

Min. pressure: 0 bar
Return force to min.height: ≤200N
Overall weight with clamped plates: 2.0kg

Vibration isolation - dynamic characteristic values
Design Height H: recommended 110mm, minimum 90mm
Pressure p[bar] 3 4 5 6 7 8 Vol. V[l]
Force(Load) [KN] 3.9 5.3 6.8 8.3 9.6 10.9 1.8
Spring rate [N/cm] 1315 1620 1925 2230 2535 2840
Natural frequency [Hz] 2.9 2.8 2.7 2.6 2.6 2.6

Pneumatic application-static characteristic values
Force F[KN]
Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 120 3.1 4.3 5.6 6.9 8.0 9.2 1.9
110 3.9 5.3 6.8 8.3 9.6 10.9 1.8
100 4.5 6.1 7.9 9.7 11.0 12.4 1.7
90 5.0 6.8 8.9 10.8 12.2 13.8 1.5
80 5.5 7.4 9.7 11.6 13.3 15.0 1.3
70 5.9 7.9 10.3 12.3 14.2 16.0 1.1
60 6.3 8.2 10.7 13.0 15.0 17.0 0.9



Guomat 1B8×4 air spring applied to expansion chuck

The air spring is filled with compressed air in a sealed container, and uses the compressibility of the gas to achieve its elastic effect. Air springs have ideal nonlinear elastic characteristics.

The height of the annular air spring is limited from the inside, then its rubber walls will expand outwards when inflated. In this way, the air spring can be used as an expansion chuck. Note that the air must be drawn from the same mechanism that limits the height of the air spring.


The reated picture
