Air Shock Cushion 110mm Rubber Air Spring YS-160-2V YS1602V For Punch Press Machine

Name: Air Shock Cushion 110mm Rubber Air Spring YS1602V YS1602V For Punch Press Machine
Brand: GUOMAT
Price: 59.9 USD

Air Shock Cushion 110mm Rubber Air Spring YS-160-2V YS1602V For Punch Press Machine Manufactures

Brand Name : GUOMAT

Model Number : 2B160-2

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-89.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Product Name : Rubber Air Spring

Material : Rubber Bellow and Aluminum Cover

Warranty : 1 Year Warranty

Brand : GUOMAT/Customized

Cross : YS-160-2V

Package : Cartons

Application : Punch Press Machine

Natural Height : 110mm

Contact Now

YS-160-2V/YS1602V Air Shock Cushion 110mm Rubber Air Spring For Punch Press Machine

Product Description

Brand	GUOMAT
Name	Punch Air Spring
Warranty	1 Year
Material	Rubber+Steel
HS Code	8708809000
Condition	Brand New
Delivery Time	3-8 Working Days
Payment	L/C,T/T,Western Union,PayPal

Specifications and Detailed Technical Parameters

Minimum height: 68mm
Maximum height: 174mm
Design height: 110mm
Maximum outer diameter when compressed: 176mm
Cover diameter: 126mm

Convolutions: 2

Approximate standard height and internal pressure 5kg/cm2
Volume: 0.82 (I)
Loading capacity: 510KGS
Natural frequency: 2.9HZ

Characteristics of Punch Air Springs

Long Life: Punch air springs are known for their durability and long life.
No other springs required: these air springs use compressed air as the elastomer, giving them the flexibility to handle large loads. Therefore, they do not require the use of additional springs.
Wide pressure range: By changing the internal pressure through compression, the punch air spring can withstand a wide range of pressure changes. This makes them suitable for presses with widely varying pressure ranges.
Height Adjustment: Punch air springs can be used with height adjustment valves to maintain a constant height and prevent load fluctuations.
Excellent damping effect: The punch air spring is used in conjunction with the auxiliary oil tank and throttle valve to provide excellent damping effect and reduce the resonance amplitude.
Simple installation and disassembly: The punch air spring has a simple structure and is easy to install and disassemble.

Double Convoluted Type Air Spring Can be Used in General Punch Machines on the Market.

Model	Height			Model	Height
Model	Max.H	Min.H	Natural H	Model	Max.H	Min.H	Natural H
YS-115-2V	60	157	90	YS-320-2V	74	260	162
YS-130-2V	50	143	90	YS-355-2V	74	260	162
YS-160-2V	68	174	110	YS-405-2V	74	260	162
YS-210-2V	64	234	138	YS-460-2V	100	290	185
YS-250-2 VS	64	234	138	YS-510-2V	199	290	185
YS-250-2 V	64	234	138	YS-560-2V	100	290	185
YS-280-2V	74	260	162	YS-610-2V	100	290	185
YS-660-2V	74	260	162	YS-710-2V	105	295	190

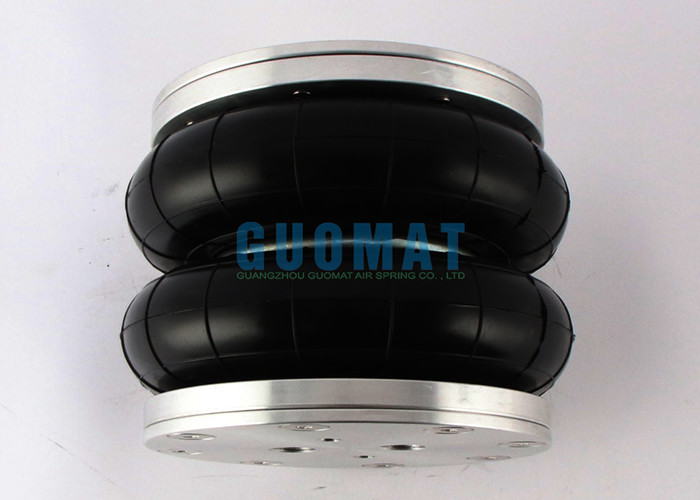

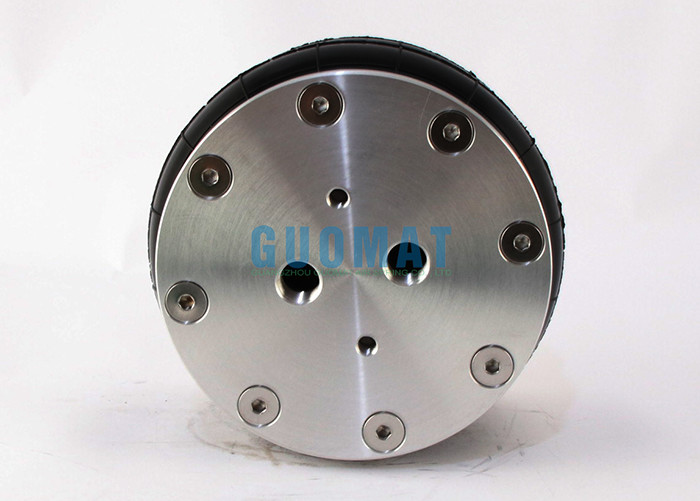

The Real Pictures

Air Shock Cushion 110mm Rubber Air Spring YS-160-2V YS1602V For Punch Press Machine
