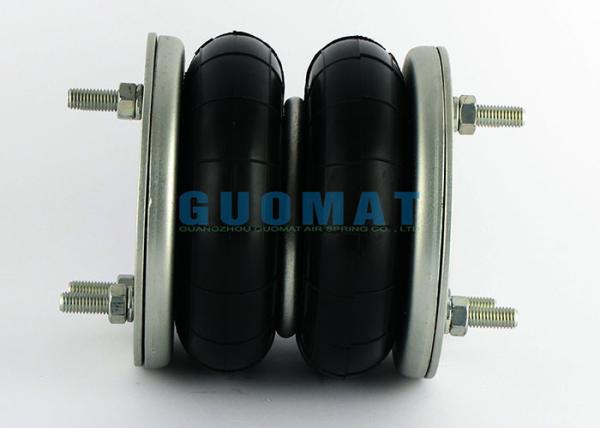

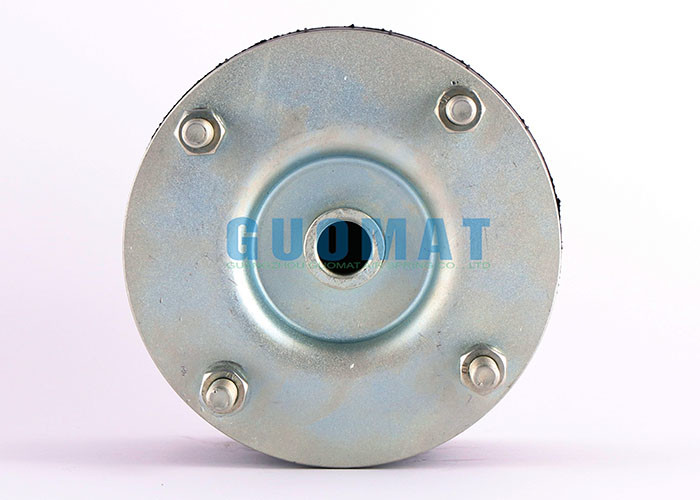

OEM Standard 6''X2 W01R584053 Firestone Double Convoluted Rubber Air Bag For Bagging Machine
Product Description
| Product Name: | Air Spring |
| Description: | Industrial Air Spring with Flange |
| MOQ: | 1 PCS |
| Warranty: | 12 Months |
| Material: | Rubber+Steel |
| Package: | Carton |
| Payment: | L/C , T/T , Western Union |
| Port of shipment | NINGBO, SHANGHAI, TIANJIN, GUANGZHOU, SHENZHEN |
| Shippment: | Bye sea, By air, by DHL Fedex |
Replaces These Air Springs (Air Bellows)
Continental Contitech: FD 76-14 DS CR 70215
Continental Contitech: FD 76-14 1/2 M10
Continental Contitech: FD 76-14 DS G1/2
Continental Contitech: FD 76-14 DS G1/2 CR
Continental Contitech: FD 76-14 DS CR G1/2
Continental Contitech: FD 76-14 / FD76-14 / FD7614
Firestone style Number: 6''X2 / 6''x2 / 6x2
Firestone Part Number: W01-R58-4053 / WO1-R58-4053
Firestone Part Number: W01 R58 4053 / WO1 R58 4053
Firestone Part Number: W01R584053 / WO1R584053
Dunlop FR: 6''x2 SP1482
Dunlop UK(Pneuride): PNP 30550 0112 / PNP30550 0112
Dunlop UK(Pneuride): PNP 305500112 / PNP305500112
Norgren Part Number: M/31062
Norgren Part Number: M31062
Norgren Part Number: M 31062
NominalØ(inch)xconvolution: 6''X2 / 6''x2 / 6x2
Parker Part Number: 6''X2 9109001
Dunlop 6x2 Detailed Technical Parameters
Maximum Diameter: 168mm
Space Required: 180mm
Minimum Height: 73mm
Maximum Height: 170mm
Total Stroke: 97mm
Static Height: 120mm
Effective Area at Static Height: 140cm2
Bellows Weight: 2.25kg
Maximum Working Pressure: 8bar
Burst Pressure: 40bar
We also Supply other Air Springs
| Type | Firestone | Dunlop Pneuride | Dunlop Springride | Contitech | Norgren | Parker |
| 4 1/2" x 1 | W01R584050 | 4 1/2" x 1 | SP2334 | FS 44-5 DI | PM/31041 | 9109400 |
| 4 1/2" x 2 | W01R584051 | 4 1/2" x 2 | SP2441 | FD 44-10 DI | PM/31042 | 9109401 |
| 4 1/2" x 3-E | W01R584035 | 4 1/2" x 3 | SP2895 | FT 44-15 DI | PM/31043 | 9109402 |
| 6" x 1 | W01R584078 | 6" x 1 | SP2913 | FS 76-7 DI | PM/31061 | 9109004A |
| 6" x 1 | W01R584052 | 6" x 1 | SP1536 | FS 76-7 DS | M/31061 | 9109004 |
| 6" x 2 | W01R584070 | 6" x 2 | SP2917 | FD 76-14 DI | PM/31062 | 9109001A |
| 6" x 2 | W01R584053 | 6" x 2 | SP1482 | FD 76-14 DS | M/31062 | 9109001 |
| 6" x 3 | | 6" x 3 | SP2923 | FT 76-20 DI | PM/31063 | 9109007A |
| 6" x 3 | W01R584095 | 6" x 3 | SP2861 | FT 76-20 DS | M/31063 | 9109007 |
| 8" x 1 | W01R584054 | 8" x 1 | SP1537 | FS 138-8 DS | M/31081 | 9109014 |
| 8" x 2 | W01R584055 | 8" x 2 | SP1490 | FD 138-18 DS | M/31082 | 9109011 |
| 8" x 3 | W01R584056 | 8" x 3 | SP2863 | FT 138-26 DS | M/31083 | 9109017 |
| 10" x 1 | W01R584057 | 10" x 1 | SP2523 | FS 210-10 DS | M/31101 | 9109024 |
| 10" x 2 | W01R584058 | 10" x 2 | SP1538 | FD 210-22 DS | M/31102 | 9109021 |
| 10" x 3 | W01R584059 | 10" x 3 | SP1539 | FT 210-32 DS | M/31103 | 9109031 |
| 12" x 1 | W01R584060 | 12" x 1 | SP1540 | FS 412-10 DS | M/31121 | 9109044 |
| 12" x 2 | W01R584061 | 12" x 2 | SP1541 | FD 412-22 DS | M/31122 | 9109041 |
| 12" x 2-E | W01R584039 | 12" x 2 Extend. | | | | |
| 12" x 3 | W01R584062 | 12" x 3 | SP1542 | FT 412-32 DS | M/31123 | 9109051 |
| 14" 1/2 x 1 | W01R584063 | 14" 1/2 x 1 | SP1543 | FS 614-13 DS | M/31141 | 9109064 |
| 14" 1/2 x 2 | W01R584064 | 14" 1/2 x 2 | SP1556 | FD 614-26 DS | M/31142 | 9109061 |
| 14" 1/2 x 3 | W01R584065 | 14" 1/2 x 3 | SP1558 | FT 614-36 DS | M/31143 | 9109069 |
| 16" x 1 | W01R584066 | 16" x 1 | | FS 816-15 DS | M/31161 | 9109026 |
| 16" x 2 | W01R584067 | 16" x 2 | SP1557 | FD 816-30 DS | M/31162 | 9109171 |
| 16" x 3 | W01R584068 | 16" x 3 | SP2141 | FT 816-40 DS | M/31163 | 9109177 |
| 21" 1/2 x 2 | | 21" 1/2 x 2 | SP1408 | | M/31212 | 9109153 |
| 26" x 2 | | 26" x 2 | SP2342 | | M/31262 | 9109159 |
