Brand Name : ContiTech
Model Number : FS 412-10
Certification : ISO/TS16949:2009
Place of Origin : GuangDong, China
MOQ : 6pcs
Price : Negotiable
Payment Terms : T/T, Western Union, L/C
Supply Ability : 1000pcs/week
Delivery Time : 2-8 work days
Packaging Details : Strong Carton Box Or As Customers Need
Spring Type : Single Convoluted Air Bag
Item : Contitech Air Spring
Material : Rubber and Steel
Function : Reduce Shock
Gas Hole : G1/2
Part Number : FS 412-10 DS
Packing Size : 24*24*24(cm)
Use For Machine : Direct Force Machine
FS 412-10 DS Original Contitech Convoluted Industrial Flange Air Spring G1/2 Air Bags
Product Description
The FS412-10 Contitech Rubber Air Spring is a specific type of industrial air spring manufactured by ContiTech, a recognized development partner and original equipment manufacturer in the field of air springs for commercial vehicles and buses . This air spring is designed for use in industrial applications and features a single swing, 412 cm2 effective area, 10 cm maximum stroke, and detachable connecting parts with stud installation.
Replaces These Air Springs (Air Bellows)
Continental ContiTech: FS 412-10 DS 67962
Continental ContiTech: FS 412-10 1/2 M10
Continental ContiTech:FS 412-10 G1/2 M10
Continental ContiTech: FS 412-10 DS G1/2
Continental ContiTech: FS 412-10 DS G1/2 M10
Continental ContiTech:FS 412-10 DS / FS 412-10DS / FS 412-10DS
Continental ContiTech Bellow:FS 412-10 / FS412-10 / FS41210
FirestoneNo: WO1-R58-4060 / W01R58 4060 / W01R584060
Firestone Style: 12"x1/12"x1/12x1
Dunlop FR: 12"x1SP1540
Dunlop UK (Pneuride):PNP 30552 0120 / PNP305520120
Norgren: M/31121 / M 31121 / M31121
Nominal (inch) x convolutions:12"x1/12"x1/12x1
Parker:12"x1 9109044
Contitech FS412-10 Rubber Air Spring Technical Data
Maximum Height: 150 mm / 5.9 in
Minimum Height: 50 mm / 1.96 in
Recommended heught for Vibration isolation: 120 mm / 4.72 in
Use in dotted range >135 mm / 5.31 in
Minimum pressure: 0 bar
Return force to min.height: ≤200N
Weight: 5.44 KG
The rubber bellows max.outer diameter: 330 mm / 12.99 in
Cover plate diameter: 260 mm / 10.24 in
The screw: M10
Center distance between threads: 232 mm / 9.13 in
Suitable installation width: 350 mm / 13.78 in
ContiTech Air Springs
ContiTech offers a comprehensive range of different model series suitable for nearly all applications in machine and plant engineering, including technically complicated tasks. The air actuators are easy to install, reliable, maintenance-free, durable, and inexpensive to purchase and operate.
Gas-Filled Hole / Air Inlet: By filling air porosity for inflatable air spring
Bolt / Mounting Stud: Bolt is fixed as the installation of air spring in car or equipment
Upper Retainer: Upper Retainer to protect the whole air spring
Rubber Bumper (Optional): Prevent the air spring up and down on the plate and base plate collision
Flexible Bellows: The main part can lock the air and flexible activities up and down
Piston/ The base: Base is also carrying fluctuation pressure, sealed air and make skins can according to the fluctuation of the trajectory
Mounting Stud: fixed as the installation of air spring in car or equipment
After Service
(1) | Strict Testing before shipment |
(2) | Follow up the customers' feedback |
(3) | Quality Guarantee |
Packing
(1) | Neutral packing |
(2) | Customized packing |
If you are interested in our products , please Send your Inquiry Details in the Below, Click "Send" Now!!
![]() |

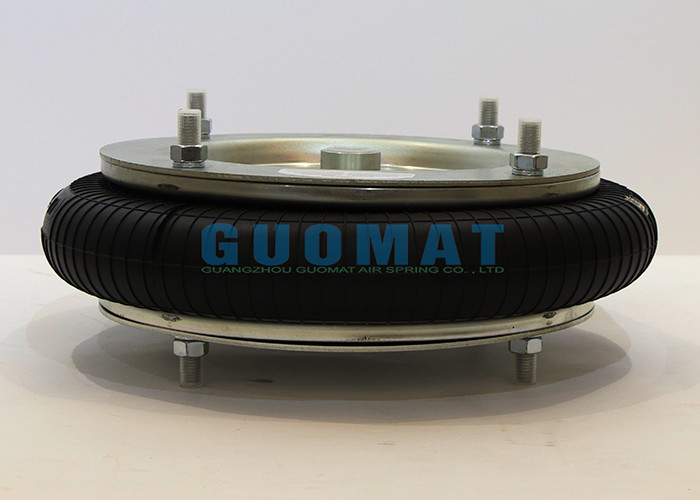

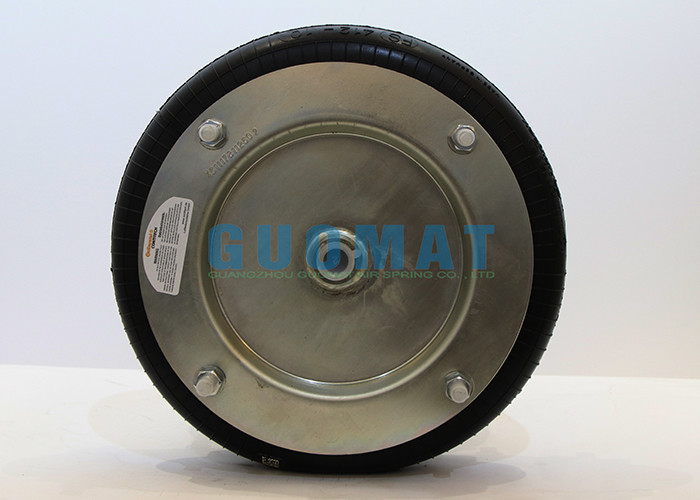

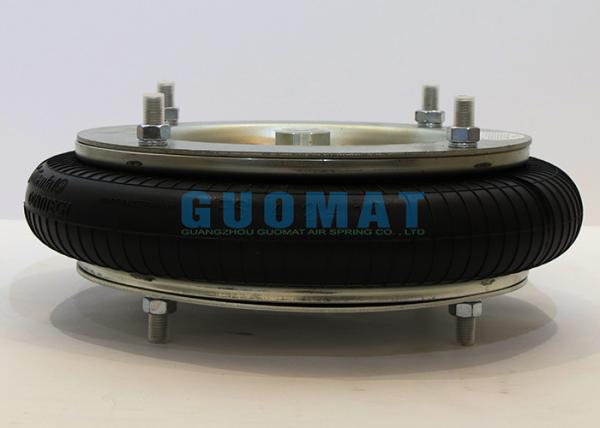

FS 412-10 DS Original Contitech Convoluted Industrial Flange Air Spring G1/2 Air Bags Images |
