Durable Double Convoluted Air Help Spring W01-358-6799 Firestone Plate Industrial Rubber Bellows
Brand: GUOMAT/Neutral
Model Number: 2B6799
Warranty: 1 Year
Material: Rubber+Steel
Type: Air Spring
Certification: ISO/TS16949:2009
Quality: High-Quality
MOQ: 1 PC
Application: Industrial Machine, Auto Suspension Systems
OEM Numbers / Refer Numbers
| Firestone Number | W01-358-6799,W01 358 6799,W013586799 |
| Contitech Number | FD 530-35 543,FD530-35 543 |
| Contitech Number | 161388 |
| Goodyear Number | 2B14-476,2B 14-476,2B14 476,2B14476 |
| Goodyear Number | 578923356,578 92 3 356,578-92-3-356 |
| Triangle Number | 6412,4543 |
| Neway Holland | 90557203 |
| SAF Holland | CBL14/15/16/17 |
Technical Data
❶Nut / Blind Nut
Screw Center Distance of Top Cover Plate : 159.9mm
Screw Center Distance of Top Cover Plate : 159.9mm
Screw Center Distance of Bottom Cover Plate : 159.9mm
❷ Cover Plate
Top Cover Plate Diameter: 289mm
Bottom Cover Plate Diameter: 289mm

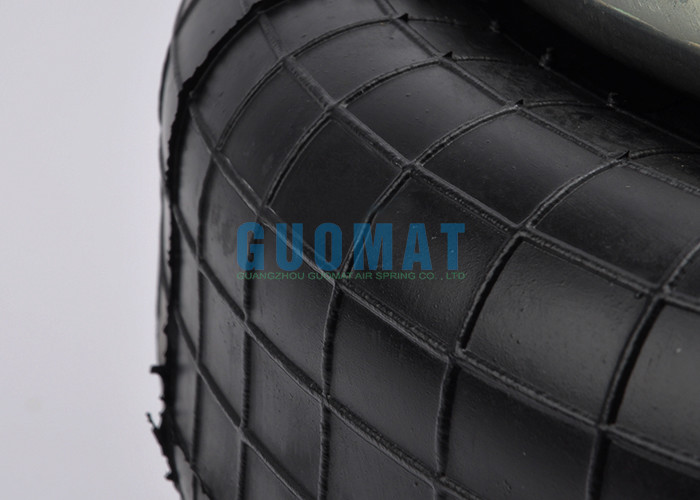

❸Rubber Bellows
Rubber Bellows MAX Diameter: 406mm
Rubber Bellows Natural Diameter : 386mm
The Working Stroke : MAX 391 mm to MIN 104mm
Maximum Height : 391mm
Minimum Height : 104mm
Compression Height : 287mm
❹ Bumper block / Buffer block
With Bumper Block Or Without Bumper Block
Industrial Air Spring
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Every Standard Air Spring Consists of 4 Layers.
•The inner layer which actually contains the air.
•The first layer of fabric reinforced rubber applied
at a specific angle.
•The second layer of fabric reinforced rubber which
is laid to a specific angle to the first layer.
•The cover to protect the bias fabric plies.
