2B9-253 Goodyear Air Springs 578923206 Firestone W013586945 For Ridewell 1003586945C
Goodyear: 2B6945 Cross others OEM
GUOMAT NO.2B6945
Fire stone Air Spring Part NO.:W01-358-6945
Fire stone Air Spring Part NO.:W01 358 6945
Fire stone Air Spring Part NO.:W013586945
Fire stone Air Spring Bellows NO.:20-2
Contitech Part NO.: FD 200-25 427
Contitech Part NO. :FD200-25 427
Contitech Part NO.:FD20025 427
Goodyear Part NO.: 2B9-253
Goodyear Part NO.:2B9253
Goodyear Part NO.:2B9253
Goodyear Bellows NO.: 578-92-3-206
Goodyear Bellows NO.:578 92 3 206
Goodyear Bellows NO.:578923206
Triangle Part Number: 4427
Triangle Bellows Number:6332
Leland : Sc2125
Watson&Chalin: AS0119F
Watson&Chalin:AS01451G
Ridewell1003586945C
GUOMAT 2B6945 Specifications and Technical Data
Compressed Height: 3.12 inches /
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut: 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2X1/2-13UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
One hole in the middle of the Bottom Cover Plate:10.3
Rubber Bellows MAX Diameter: 262 mm
The Working Stroke : MAX 325 mm to MIN 95 mm
Gas Hole / Air inlet : 1/4 NPTF
Fire stone Air Spring Bellows Number: 20-2
Goodyear Bellows Number: 578-92-3-206 / 578923206 / 578 92 3 206
Bellows NO.: 20-2
Assembly Weight: 8.1 lbs
Design Height: 9-11 inches
Loading Capacity at 20 psig: 648 lbsf
Loading Capacity at 60 psig: 1,944 lbsf
Loading Capacity at 90 psig: 2,916 lbsf
Maximum Diameter: 10.4 inches
Operating Temperature: 56Cº to -53Cº
Compressed Height: 4.10 inches
Top Plate Number:3101
Top Plate Width:6.31 inches
Piston Number:3100
Piston Width:6.31 inches
Description and application Of GUOMAT 2B6945 air spring:
This kind of GUOMAT 2B6945 that has two Two Pillars Nuts at the top of the Cover Plate And Two Blind Nuts at the bottom of the Cover Plate. one Gas Hole / Air inlet 1/4 NPTF at the side of the top of the cover plate.This air spring can be used on trailers for retrofitting. At the same time can be used in many industrial equipment.It is very convenient to install.
W01-358-6945 Firestone Air Spring Assembly Cross Reference Numbers:
| SC2125; SP2B12RA6945; 3546945; W013586945; 2B9253; FD20025427; SC2125/LoadGuard; |
| AS0119F/Watson&Chalin; AS01451G/Watson&Chalin/1003586945C/Ridewell; |
| | Description | Assembly Order No. |
| Style 20-2 | Blind nuts,1/4 BSP | W01-M58-6183 |
| Two Ply Bellows | Blind nuts,3/4 BSP | W01-M58-6194 |
| Countersunk steel bead rings,40 mm bolts, nuts, washers | W01-M58-6880 |
| Rubber bellows only | W01-358-0305 |

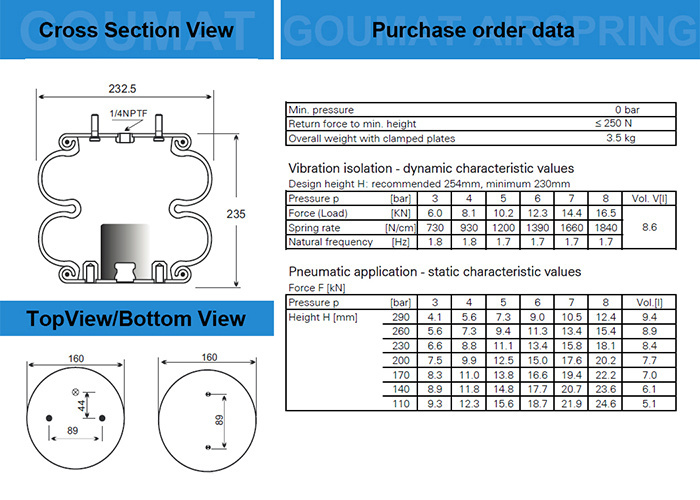

The drawing and data of GUOMAT 2B6945 air spring:

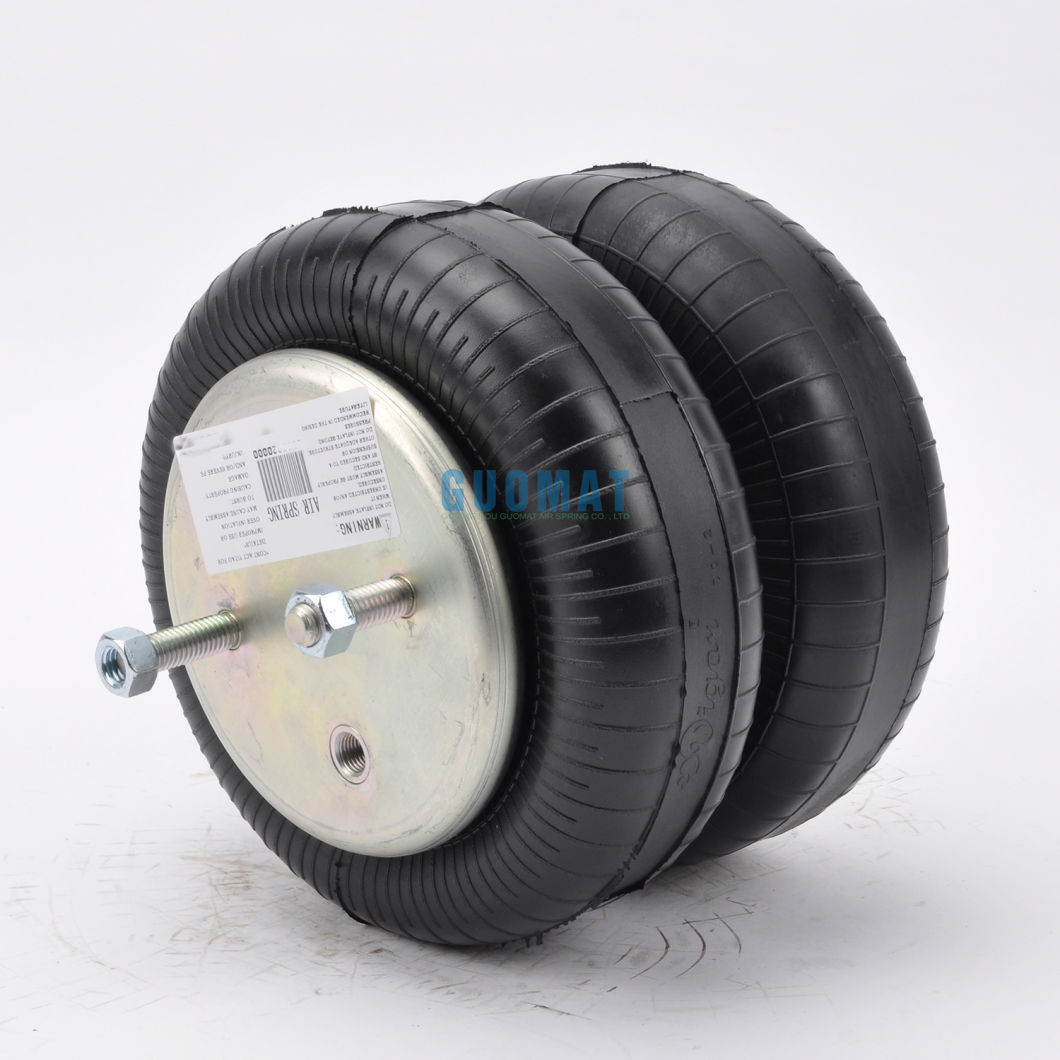

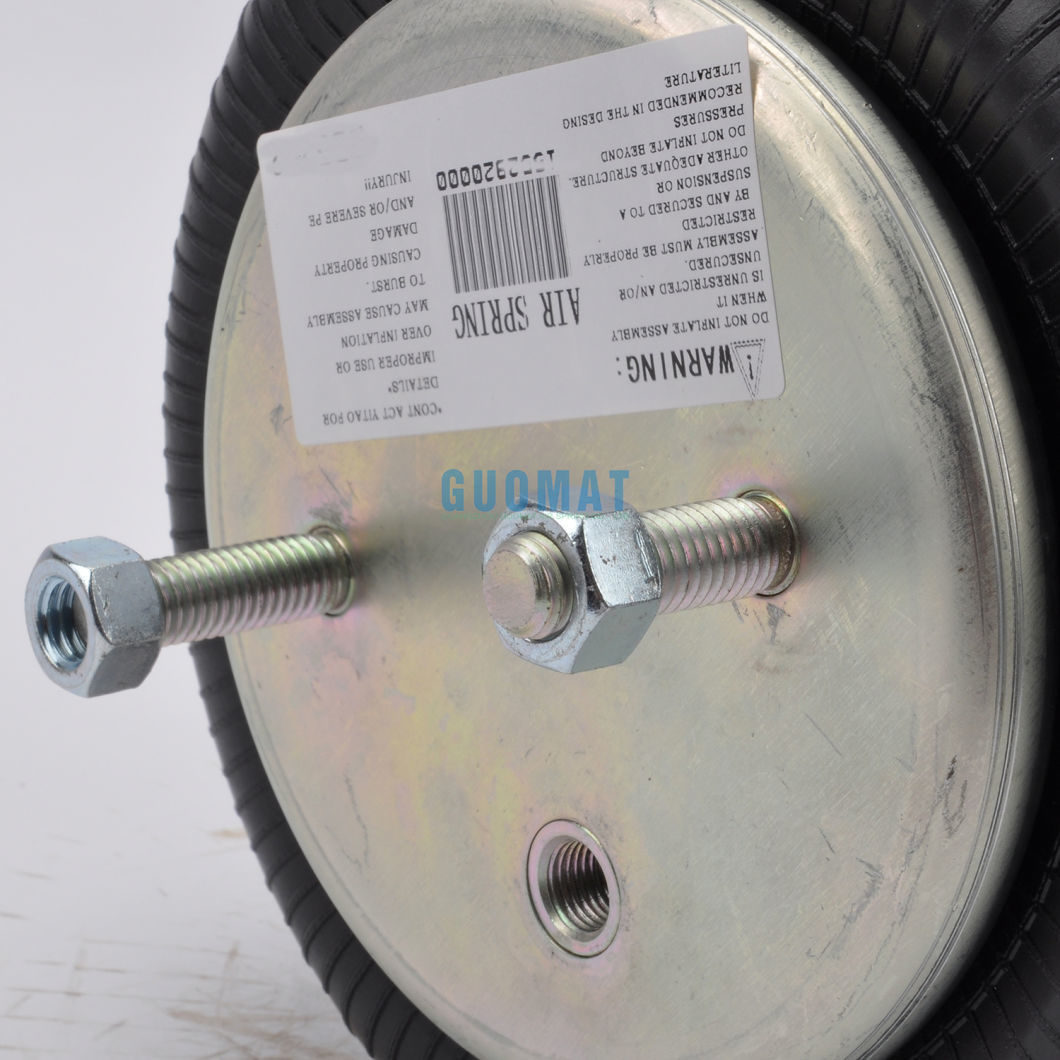

The Real Pictures of GUOMAT NO.2B6945 Air Springs:
