Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags

Brand Name : GUOMAT

Model Number : 2B6943

Certification : ISO/TS16949:2009

Place of Origin : Guangzhou,China

MOQ : 5pcs

Price : USD59.9-69.9/PC

Payment Terms : L/C, T/T, Western Union Or Others

Supply Ability : 1000PCS/Week

Delivery Time : 3-7 Working Days

Packaging Details : Strong Carton Box or as Customers Requirement

Item Name : Plate Industrial Rubber Bellows

Quality : 100 % Tested

Fuction : Reduce Shock

Firestone : W01-358-6943

After-sales Service : 12 Months

Type : Gas-Filled

Goodyear : 2B9-250

Stroke : 79mm-325mm

Contact Now

Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags


OEM NO.

Firestone W01-358-6943
Firestone

WO13586943
Firestone

WO1-358-6943
Firestone

W013586943
FIRESTONE W01-358-6943
FIRESTONE

WO13586943
FIRESTONE

WO1-358-6943
FIRESTONE

W013586943
Contitech FD 200-25 426
Contitech FD 200 25 426
Contitech FD200-25 426
Contitech FD 200 25 426
Contitech FD20025426
Contitech 161332
Triangle 6332
Triangle 4426
Goodyear 2B9-250
Goodyear 2B9 250
Goodyear 578923206
Watson&Chalin AS-0041
Watson&Chalin AS 0041
Neway/SAF 90557237
Ridewell 1003586943C
Tuthill 6352
Van Raden
V-Steer ll (Lift Bag


Specifications and Detailed Technical Parameters:AIRSUSTECH 2B6927
  • Nut/blind nut
Top plate screw (nut) teeth: 2X1/2-13UNF
The screw center distance of the top cover plate: 89mm
Screw (nut) teeth of the bottom cover plate: 2X3/8-13UNC
The screw center distance of the bottom cover plate: 89 mm
  • Air hole/air inlet/air fittings
Air hole/air inlet: 1/4NPTF
The screw center distance between the air hole and the nut: 44.5mm
  • Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160mm
  • Bell rubber bellows
Maximum diameter of rubber bellows: 262 mm
Natural diameter of rubber bellows:240 mm
Working stroke: minimum 79 mm to maximum 325 mm
Maximum height: 325mm
Minimum height: 79 mm
Stroke height: 246mm
  • Bumper block/bumper block
Without bumper block
  • Belt loop/Belt loop
With belt loop: One belt loop


Min. pressure: 0bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 3.5kg


Vibration isloation-dynamic characteristic values
Design height H: recommended 254mm, minimum 230mm
Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Force (Load) [KN] 6.0 8.1 10.2 12.3 14.4 16.5 8.6
Spring rate [N/cm] 730 930 1200 1390 1660 1840
Natural frequency [Hz] 1.8 1.8 1.7 1.7 1.7 1.7


Pneumatic application-static characteristic values
Force F[KN]
Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 290 4.1 5.6 7.3 9.0 10.5 12.4 9.4
260 5.6 7.3 9.4 11.3 13.4 15.4 8.9
230 6.6 8.8 11.1 13.4 15.8 18.1 8.4
200 7.5 9.9 12.5 15.0 17.6 20.2 7.7
170 8.3 11.0 13.8 16.6 19.4 22.2 7.0
140 8.9 11.8 14.8 17.7 20.7 23.6 6.1
110 9.3 12.3 15.6 18.7 21.9 24.6 5.1

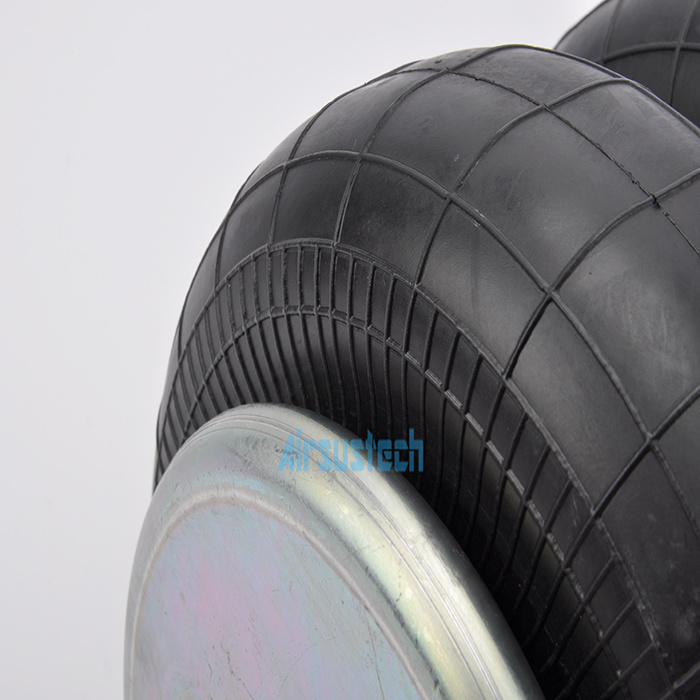

The related picture of 2B6943

Goodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air BagsGoodyear 2B9-250 Air Spring Rubber W01-358-6943 Firestone Double Bellow Suspension Air Bags
