W02-358-3000 Firestone Sleeve Type Air Spring 1S3-013 Goodyear Super Cushion Air Suspension
OEM Cross Number
Part Number: G3000
Brand: GUOMAT
Firestone Sleeve Seat Air Spring W02-358-3000
Firestone Sleeve Seat Air Spring W02 358 3000
Firestone Sleeve Seat Air Spring W023583000
Firestone Sleeve Seat Air Spring WO2-358-3000
Firestone Sleeve Seat Air Spring WO2 358 3000
Firestone Sleeve Seat Air Spring WO23583000
Contitech Air Spring SZ37-6
Contitech Air Spring SZ 37-6
Contitech Air Spring SZ37 6
Goodyear Air Spring Bag 1S3-013
Goodyear Air Spring Bag 1S 3-013
Goodyear Air Spring Bag 1S3 013
GUOMAT G3000 Air Suspension Technical Data
The Diameter of Top Cover Plate: 74.5mm
The Diameter of Bottom Plate: 61.2mm
Air Fitting: 1/8-27 NPTF
Rubber Bellows Max Diameter: 91.5mm
Rubber Bellows Min.Diameter: 38mm
Rubber Bellows Natural Diameter: 80mm
Maximum Height :91 mm
Minimum Height :38 mm
Compression Height : 53 mm
Top Cover Plate Screw (Nut) Tooth : 1pcX5/16-18unc
Screw Center Distance of Top Cover Plate : in the middle
Bottom Cover Plate Screw (Nut) Tooth : 1pcX5/8-11unc
Screw Center Distance of Bottom Cover Plate : in the middle

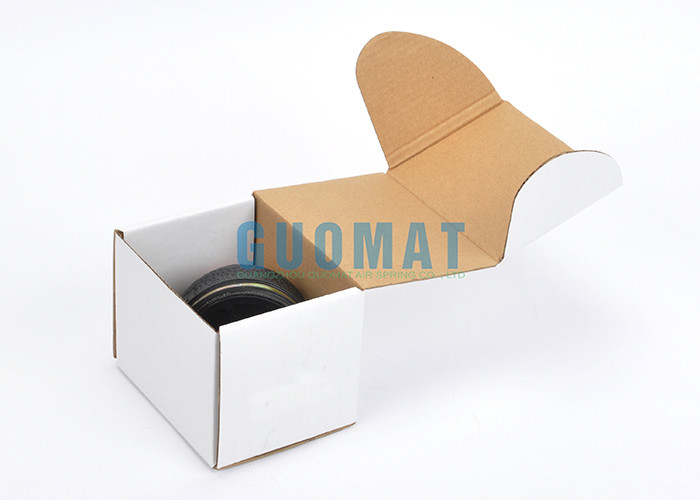

Packaging Data Information
| Model No. | N.W.(KG) | G.W.(KG) | Packing length(CM) | Packing height(CM) | Packing width(CM) | QTY |
| G3000 | 0.3 | 0.35 | 13 | 10 | 10 | 1 |
| G3000 | 0.3 | 0.6 | 13 | 14 | 10 | 2 |
Goodyear Cab Air Spring
GOODYEAR 1S4-074 Air Spring
GOODYEAR 1S5-171 Air Spring
GOODYEAR 1S5-038 Air Spring
GOODYEAR 1S5-040 Air Spring
GOODYEAR 1S5-045 Air Spring
GOODYEAR 1S6-025 Air Spring
GOODYEAR 1S3-013 Air Spring
GOODYEAR 1S4-008 Air Spring
Advantages of Cab Air Springs
Unparalleled comfort is provided by the installation of cab air springs, which reduce stiffness not possible by any other means alone. This means less vibration transmitted from the cab to the driver, and potentially less driver fatigue and downtime.
About Us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.
FAQ
| 1. Q: How to order ? |
| A: Step 1, please tell us what model and quantity you need;
Step 2,then we will make a PI for you to confirm the order details;
Step 3,when we confirmed everything ,you can arrange the payment;
Step 4,finally we deliver the goods within the stipulated time. |
| |
| 2. Q: When will make delivery ? |
| A: Delivery time is 3-8woring days. |
| |
| 3. Q:After-sales service |
| A:1 year warranty for all kinds of products;
If you have any questions after receiving the goods, please feel free to contact me ,as an experienced manufacturer ,you can rest assured of the quality and after-sales service. |
| |
| 4. Q:Payment |
| A:T/T,Western Union,L/C |
| |
| 5.Q:Transportation |
| A:Transportation by DHL,UPS,EMS,Fedex,Air freight,Sea freight. |

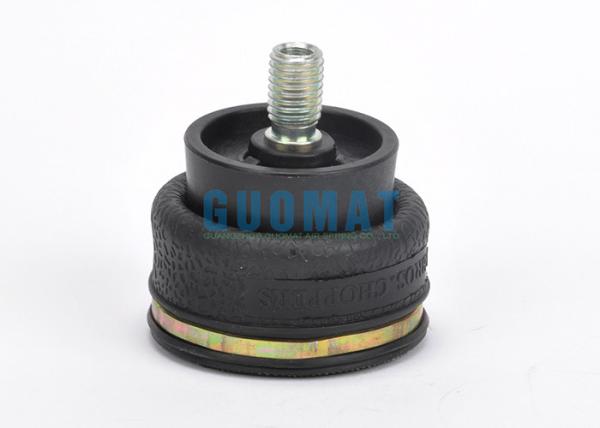

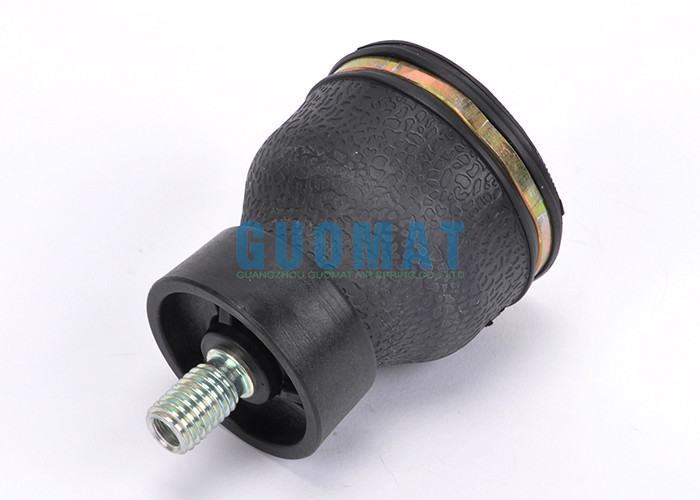

The Real Pictures of W02-358-3000 Air Shock Absorber
