W01-358-6910 Firestone Double Convoluted Air Spring Goodyear 2B9-200 Rubber Air Bags

Name: W013586910 Firestone Double Convoluted Air Spring Goodyear 2B9200 Rubber Air Bags
Brand: GUOMAT
Price: 59.9 USD

W01-358-6910 Firestone Double Convoluted Air Spring Goodyear 2B9-200 Rubber Air Bags Manufactures

Brand Name : GUOMAT

Model Number : 2B6910

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $59.9-69.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Material : Rubber Bellow and Aluminum Cover

Warranty : 1 Year Warranty

MOQ : 10 Pieces

Spring Type : Air Filled

Number of Convolution : 2

Color : Black

Function : Reduce Shock

Quality : 100 % Tested

Contact Now

W01-358-6910 Firestone Double Convoluted Air Spring Goodyear 2B9-200 Rubber Air Bags

Product Description

Item	Goodyear Industrial Air Spring
Brand	Guomat/Neutral
Model Number	2B6910
Material	Rubber And Steel
Warranty	12 Months Warranty
MOQ	10 PCS
Package	(1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package
Delivery Time	3-8 Working Days
Payment	T/T, L/C, PayPal, Western Union
After Service	(1) Examination Before Shipment (2) Follow Up The Customers' Feedback
Main products we sell	Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Cross Reference Number

Firestone	W01-358-6910
Firestone	W01 358 6910
Firestone	W013586910
Contitech	FD200-19 320
Contitech	FD 200-19
Contitech	FD 200-19 320
Goodyear	2B9-200
Goodyear	2B9-202
Goodyear	2B9-216
Goodyear	578423202
Triangle	6325/4320
Taurus	KF218-6910

Brake & Wheel : M3501

Dina : A812719/AZ812719

Dayton : 3546910

Leland : Sc2011

Navistar : 554783C1

Hendrickson : S8768/458433

Ridewell : 1003586910C

SAF Holland : 57006910

Trailers De : 133128

Tuthill : 1371

Watson&Chalin : AS-0001/AS-0156G

Purchase Order Data

Min.Pressure: 0 Bar

Return Force to Min.Height: ≤200N

Overall Weight With Clamped Plates: 3.2KG

Vibration isolation-dynamic dcharacteristic values

Design height H:recommended 220mm,minimum 205mm

Pressure P ［bar］	3	4	5	6	7	8	Volume V ［I］
Force (Load) ［KN］	6.1	8.2	10.3	12.5	14.5	16.5	6.0
Spring Rate ［N/cm］	750	960	110	1340	1510	1730
Natural Frequency［Hz］	1.8	1.7	1.7	1.6	1.6	1.6

Pneumatic application-static characteristic values

Force F(kN)

Pressure P ［bar］		3	4	5	6	7	8	Volume V ［I］
Height H ［mm］	250	4.9	6.6	8.2	9.5	11.7	13.4	6.5
	210	6.7	8.8	11.0	13.3	15.5	17.6	5.8
	170	7.9	10.5	13.1	15.7	18.3	20.7	4.9
	130	9.1	12.0	15.0	17.8	20.7	23.4	4.0
	90	9.9	13.2	16.6	19.8	23.0	25.8	2.9

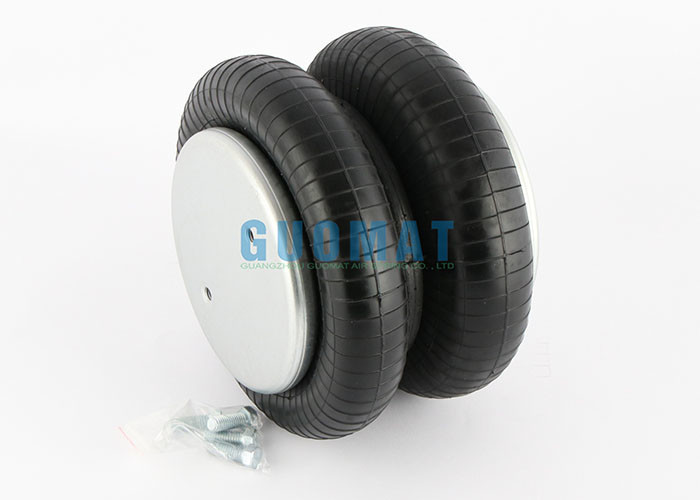

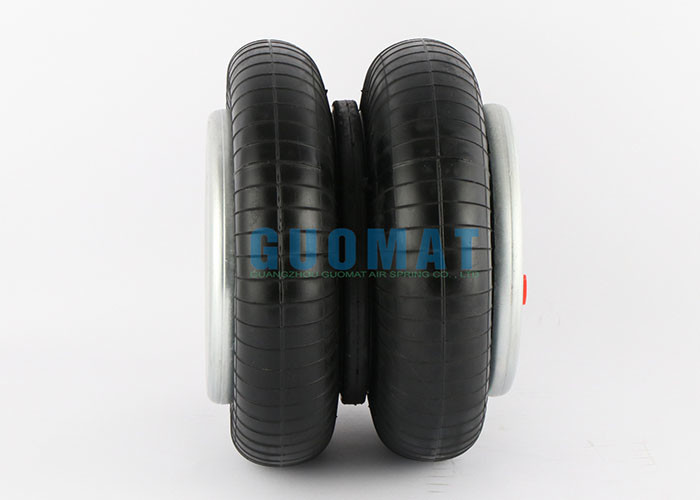

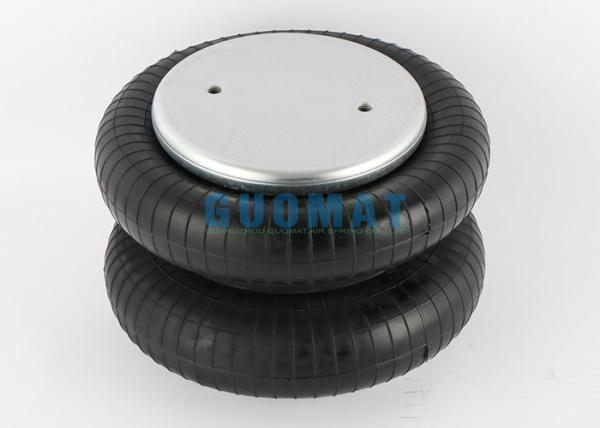

The Real Pictures
