FS 530-14 CI Contitech Single Convoluted Air Spring 1/4NPT GUOMAT Rubber Bellow For Industrial
Product Description
Brand: GUOMAT
Model No.: 1B530-14
Material: Rubber+Steel
Warranty: 12 Months
Delivery Time: 3-8 working days
Weight: 14.8 KG
Packing Size: 38*38*23(cm) (includes 2 pieces)
Comparable to
Contitech FS530-14
Contitech FS 530-14
Contitech FS530-14 CI
Contitech FS 530-14 CI
Contitech FS530-14 CI 1/4NPT OS
Contitech FS 530-14 CI 1/4NPT OS
Firestone W01-358-7091
Firestone W01 358 7091
Firestone W013587091
Firestone WO1-358-7091
Firestone WO1 358 7091
Firestone WO13587091
GUOMAT 1B53014 Technical Data
Top Cover Plate Diameter:Ø289mm
Gas Hole / Air inlet:1/4NPTF
Screw Center Distance of Top Cover Plate:158.8mm
Top Cover Plate Screw (Nut) Tooth:4X3/8-16UNC
Bottom Cover Plate Diameter:Ø289mm
Screw Center Distance of Bottom Cover Plate:158.8mm
Bottom Cover Plate Screw(Nut)Tooth:4X3/8-16UNC
The Rubber Bellow MAX Diameter:406mm
The Working Stroke:81mm-160mm
FS530-14 Contitech Air Spring
| Contitech | Cross-Reference | Manufacturer | | Order No. |
| FS 530-14 339 | Firestone W01-358-7112 Goodyear 1B14-358 | Grannung 6419 Hendrickson S-13044 Loadguard SC2012 Navistar/Fleetrite 554782C1 Ridewell 1003587112C SAF Holland 90557026/90557028/90557041 | 1/4-18 NPTF 1/2-13 UNC | 64521 |
| FS 530-14 361 | Firestone W01-358-7117 | | 1/4-18 NPTF 1/2-13 UNC 3/4-16 UNF | 64522 |
| FS 530-14 442 | Firestone W01-358-7103 Goodyear 1B14-350 | Peerless 0550-00015 | 1/4-18 NPTF 3/8-16 UNC | 64523 |
| FS 530-14 446 | Firestone W01-358-7104 | Ridewell 1003587104C | 1/4-18 NPTF 3/8-16 UNC | 64524 |
| FS 530-14 447 | Firestone W01-358-7105 Goodyear 1B14-351 | American Carrier 8003-007 | 1/4-18 NPTF 3/8-16 UNC | 64525 |
| FS 530-14 515 | Firestone W01-358-7093 | American Carrier 8003-013 | 1/4-18 NPTF
3/8-16 UNC 3/4-16 UNF | 64526 |
| FS 530-14 516 | Firestone W01-358-7096 | Meritor 200807/200792 Seats 200807 Suspensions.Inc. 200792 | 1/4-18 NPTF
3/8-16 UNC 1/2-13 UNC | 64527 |
| FS 530-14 517 | Firestone W01-358-7088 | Meritor 200175 | 1/4-18 NPTF 1/2-13 UNC | 64528 |
| FS 530-14 538 | Firestone W01-358-7094 | | 3/8-16 UNC 3/4-14 NPTF | 64529 |
Service Instructions
| M8 | max. 25 Nm |
| G1/4 | max. 25 Nm |
| G1 | max. 50 Nm |
| G3/4 | max. 50 Nm |
About Us
We always focus on the development of automotive components, and provide you with quality products and competitive prices.
If you are interested in our products, we are pleased to offer you our best quotation. If you have any question, please do let me know
We are looking forward to establishing business with you.

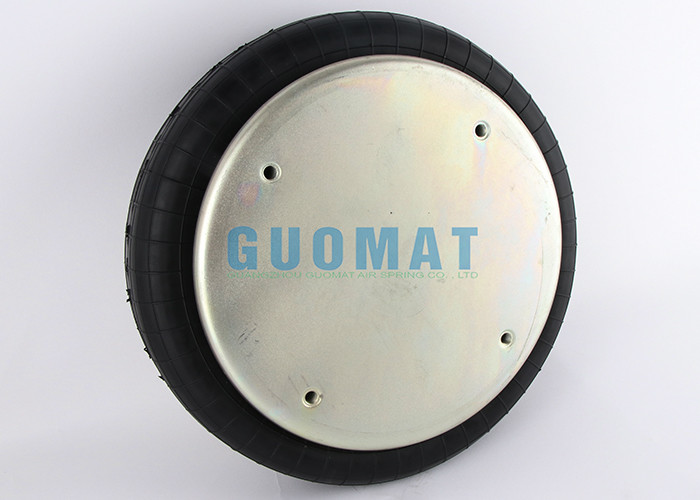

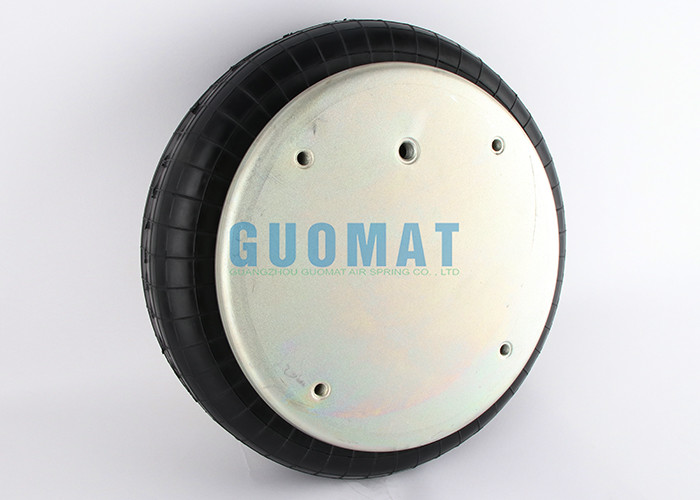

The Real Pictures
