FD120-17 ContiTech Double Bellow Air Spring G1/4 Convoluted Type Air Actuator Replacement
Product Description
| Item | Industrial Rubber Air Spring |
| Brand | GUOMAT |
| Material | Natural Rubber |
| Warranty | 12 Months |
| MOQ | 1 pc |
| Package | Carton |
| Payment | T/T,L/C,Western Union,PayPal |
| Shipment | by air,by sea,by express |
Technical Data: FD120-17 Contitech Air Spring
The top cover diameter is 135mm
Threaded hole specifications: 2 M8X1.25
Air hole specification: G1/4
The center distance between the two threaded holes of the top cover is 70mm
Bottom cover diameter is 135mm
Bottom threaded hole specifications: 2 M8X1.25
The center distance between the two threaded holes of the bottom cover is 70mm
Maximum outer diameter: 215mm
Design height: 167mm
Stroke: 75mm-230mm
Compressed height: 155mm
OEM Part Number/Cross Reference Number
Firestone Part Number W01-M58-6353
Firestone Part Number W01 M58 6353
Firestone Part Number W01M586353
Firestone Part Number WO1-M58-6353
Firestone Part Number WO1 M58 6353
Firestone Part Number WO1M586353
ContiTech Part Number FD120-17
ContiTech Part Number FD 120-17
ContiTech Part Number FD120-17 CI
ContiTech Part Number FD 120-17 CI
ContiTech Part Number FD120-17 CI G1/4
ContiTech Part Number FD 120-17 CI G1/4
ContiTech Part Number FD120-17,FD 120-17,FD12017
ContiTech Order Number 61361
Airkraft Part Number 113054
Airkraft Part Number 2B-181
Airkraft Part Number 2B 181
Airkraft Part Number 2B181
Weforma Part Number WBZ300-E2
Weforma Part Number WBZ 300-E2
Bosch Part Number 822419062
Rubber Air Spring Working Conditions
- All surfaces, including the air spring and mounting area, should be free of oil, petroleum, and solvents.
- The hydraulic and pneumatic lines of the air supply system should be leak-proof
- Air pressure must not exceed 7 bar/101 psi
- Ambient temperature should be between -40℃+70℃
- There should be sufficient clearance around the air spring to prevent any contact.
- All bolts should be tightened to specified torque specifications.
- Vehicles should be loaded to factory specifications and the load should be properly secured.
- Air springs should be kept clean. Clean with water and soap.
Rubber Air Spring Assembly
| Top Plate | Connects the Air Spring below to the vehicle frame. |
| Flexnenber (Rubber Bellow) | The bellow is a vulcanized rubber construction, consisting of a rubber internal layer, a layer of reinforced material, and an external rubber layer. This construction gives the bellow strength and durability. |
| Girdle Hoop | Stabilizes the air spring. |
| Bottom Plate | Connects the air spring and axle |

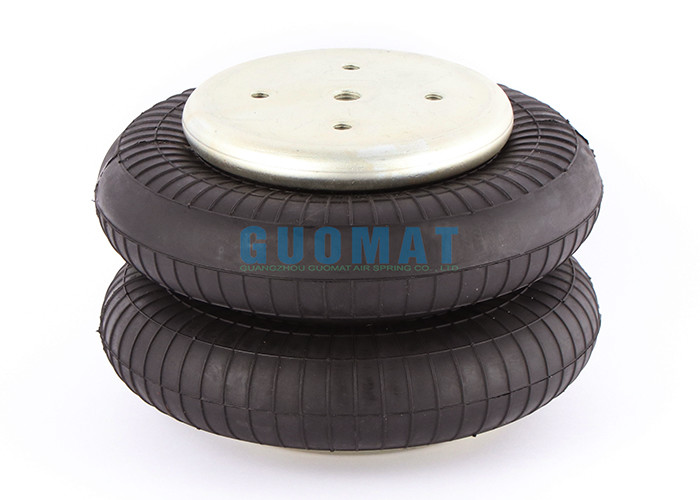

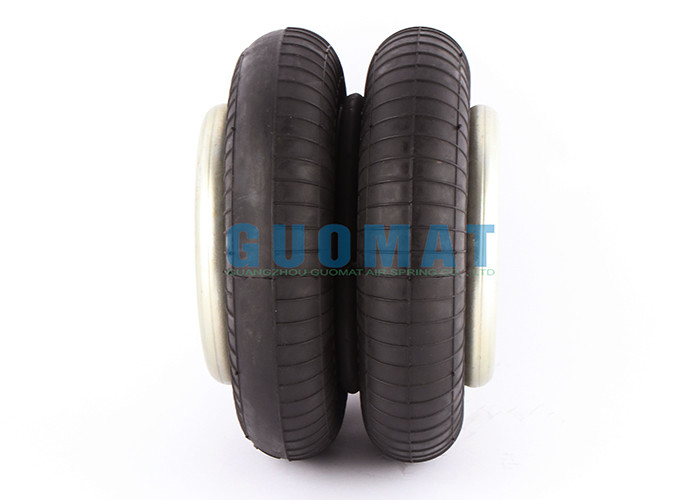

Real Pictures: GUOMAT 2B12017-1/4 Cross Contitech FD120-17 G1/4 Industrial Air Spring
