Good Quality Replace W01-358-7996 Firestone Convoluted Style Air Spring Bag 3B12-335 Goodyear
Product Description
| Item | Industrial Air Spring | Brand | GUOMAT |
| Material | Rubber,Steel | Warranty | 12 Months |
| MOQ | 1 pc | Type | Triple Convoluted Air Shock |
Technical Data : GUOMAT 3B7996
Top plate bolt/stud: M12X1.75
The bolts and combo stud distance of the top cover plate: 157.5 mm
Threaded hole of the bottom cover plate: 2X3/8-16UNC
The threaded hole center distance of the bottom cover plate: 157.5 mm
Combo stud: 1/4NPTF,M18X1.5
Top plate diameter: 231mm
Diameter of the bottom cover: 231 mm
Maximum diameter of rubber bellows: 330 mm
Working stroke: minimum 117 mm to maximum 460 mm
Maximum height: 460 mm
Minimum height: 117mm
Compression height: 343mm
Technical Data : Firestone W01-358-7996
Top cover plate diameter: 9.00
Bottom cover plate diameter: 9.00
Combination Stud/Air Inlet Stud Outside Thread is 3/4-16
Bolt or Stud: 1/2-13
Threaded Hole 3/8-16 Blind Nut on Bead Plates: 1/2-13 Pistons
The distance of Combination Stud and Bolt: 6.20
The distance of threaded Hole: 6.20
Rubber bellow diameter: 11.70
Min.height: 4.55
Refer Numbers
| Firestone | W01-358-7996 / W01 358 7996 / W013587996 |
| Firestone | WO1-358-7996 / WO1 358 7996 / WO13587996 |
| Firestone | 38 |
| Contitech | FT330-29 / FT 330-29 / FT330-29 520 / FT 330-29 520 |
| Goodyear | 3B12-335 / 3B 12-335 / 3B12 335 |
| Goodyear | 578933100 / 578 93 3 100 / 578-93-3-100 |
| Triangle | 6334 / 4520 |
| Granning/Tuthill | 8221 |
Air Springs of the Same Firestone Style Model
| Style | Firestone NO. | Replace |
| 38 | W01-358-7990 | Watson&Chalin AS-0048 |
| 38 | W01-358-7994 | Watson&Chalin AS-0019-1F |
| 38 | W01-358-7995 | Watson&Chalin AS-0048-1F |
| 38 | W01-358-7998 | Hendrickson Aux.001560 |
| 38 | W01-358-8006 | - |
| 38 | W01-358-8008 | Watson&Chalin AS-0019 |
| 38 | W01-358-8010 | Ridewell 1003588010CC |
| 38 | W01-358-8014 | Ridewell 1003588014C |
| 38 | W01-358-8016 | Ridewell 1003588016C |
| 38 | W01-358-8018 | - |
| 38 | W01-358-8025 | - |
| 38 | W01-358-8027 | Suspensions Inc. 200117 |
| 38 | W01-358-8030 | Ridewell 1003588030C |
| 38 | W01-358-8032 | Hendrickson Trailer S12405 |
| 38 | W01-358-8033 | Hendrickson Trailer S14487 |

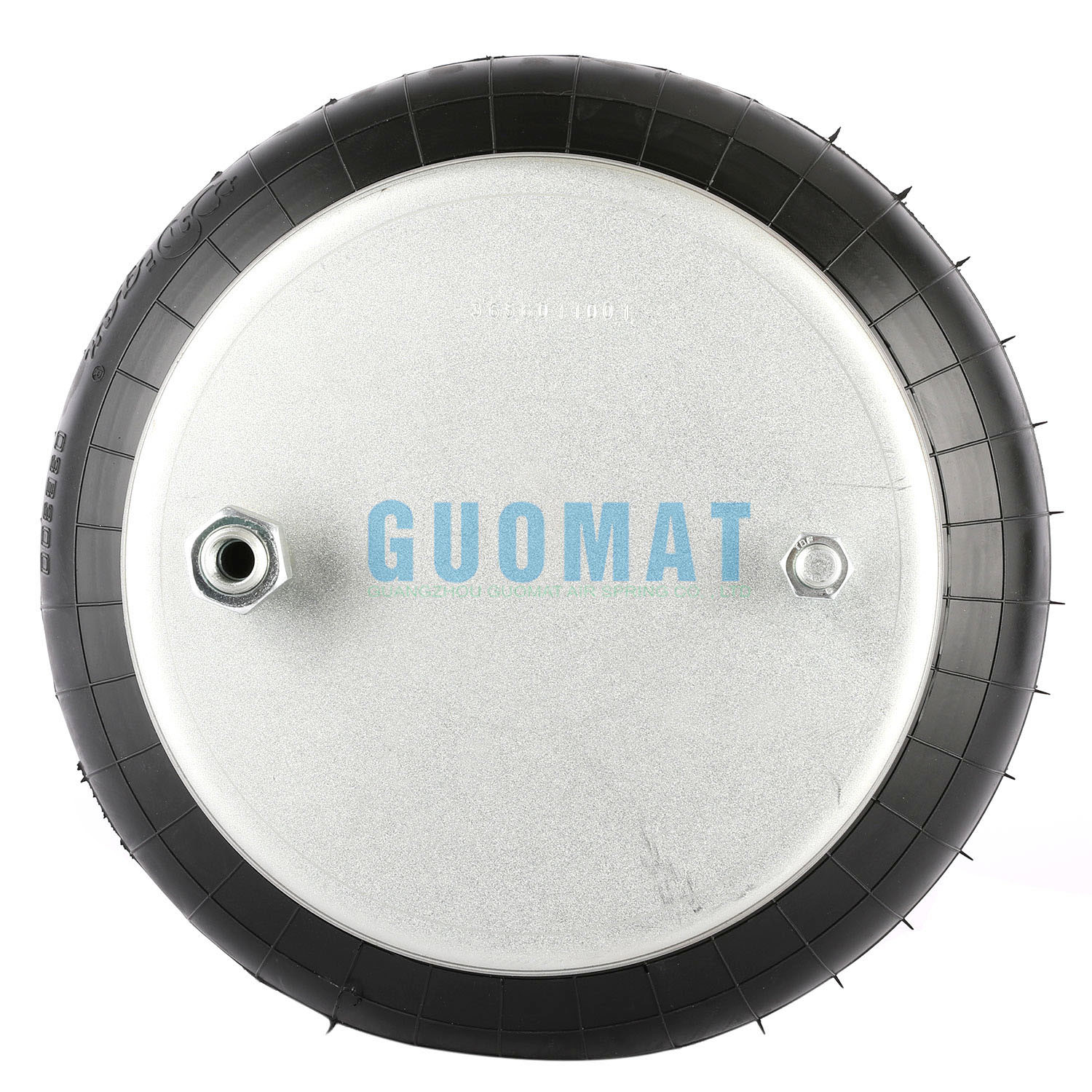

The Real Pictures
