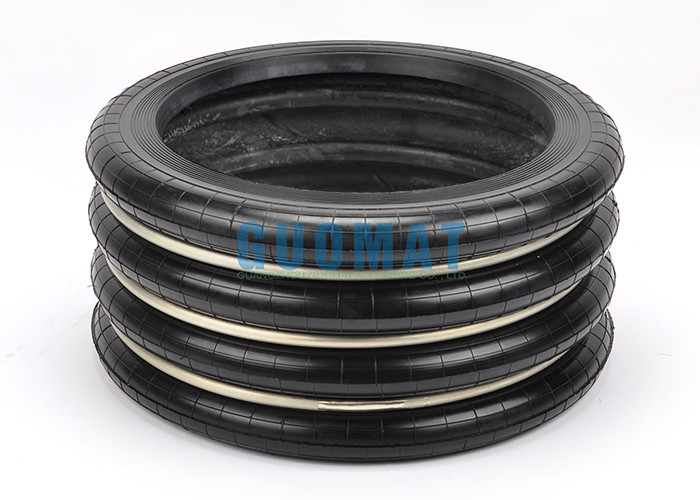

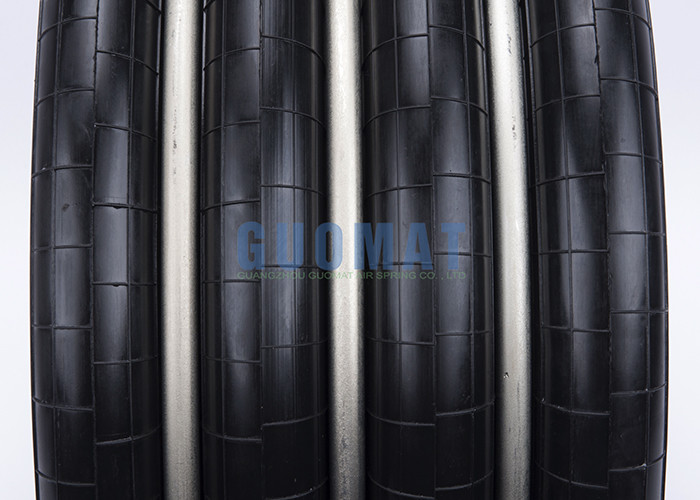

GUOMAT F-450-4 Rubber Air Bellow Replace YOKOHAMA S-450-4R Special Air Spring For Punching Equipment

Brand Name : GUOMAT

Model Number : F-450-4

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $79.9-99.9/pc

Payment Terms : T/T, Western Union, L/C

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Warranty : 12 Months

Material : High Quality Rubber

Application : Punching Press Machine

Usage : Industrial Punching Equipment

Cross Reference : YOKOHAMA S-450-4R

Number of Convolution : 4

The Girdle : With Girdle

Max. Height : 363mm

Contact Now

GUOMAT F-450-4 Rubber Air Bellow Replace YOKOHAMA S-450-4R Special Air Spring For Punching Equipment

Product Description

Punch air spring, also known as a punching machine air spring or cushion, is a type of air spring used to absorb shocks and vibrations in punching machines or punch presses during their operation. It is designed to provide precise movement control and minimize the noise and stress generated by the machine's mechanical motions. The punch air spring is typically made of rubber and consists of a sealed chamber filled with air, which compresses and expands to absorb the impact of the punch press machine.

OEM Number
GUOMAT F-450-4
GUOMAT F 450 4
GUOMAT F450-4
YOKOHAMA S-450-4R
YOKOHAMA S 450 4R
YOKOHAMA S450-4R
YOKOHAMA S-450-4
YOKOHAMA S 450 4
YOKOHAMA S450-4

F-450-4 Rubber Air Spring Model Size
Design Height: 218mm

Max.Height: 363mm
Min.Height: 123mm
Common Maximum Travel:±90mm
Compression Max Outside Diameter: 510mm
Effective Area: 1590cm2
Volume: 33.9L
Load: 80.0KN
Dynamic Spring Constant: 755n/mm
Natural Vibration Frequency: 1.6Hz
Maximum Internal Pressure: 0.69MPa
Internal Pressure Failure: 3.9-4.9MPa


Here is a General Idea of How to Install a Punch Air Spring

  • First, make sure you have all the necessary tools and equipment required for the installation. These may include a drill, wrenches, bolts, and nuts.
  • Locate the area where the air spring is to be installed. Make sure it is a suitable location that can accommodate the size and weight of the air spring.
  • Attach the air spring to the mounting bracket using bolts and nuts. Make sure the air spring is securely fastened to the bracket.
  • Install the mounting bracket onto the machine or equipment using appropriate tools like a drill. The bracket needs to be installed in such a way that the air spring can work effectively.
  • Connect the air inlet to the air spring and attach it to the air supply system. Make sure the air supply is clean and free from any debris that can damage the air spring.
  • Test the air spring to ensure it is working correctly. Check for any leaks or abnormal behavior.


GUOMAT Industrial Punch Air Spring

GUOMAT

YOKOHAMA

GUOMAT

YOKOHAMA

F-350-3

S-350-3R

F-400-4

S-400-4R

F-600-5

S-600-5R

F-600-4

S-600-4R

F-500-4

S-500-4R

F-500-3

S-500-3R

F-500-2

S-500-2R

F-450-4

S-450-4R

F-450-3

S-450-3R

F-400-5

S-400-5R

F-400-3

S-400-3R

F-350-2

S-350-2R

F-300-3

S-300-3R

F-240-3

F-240-3R
