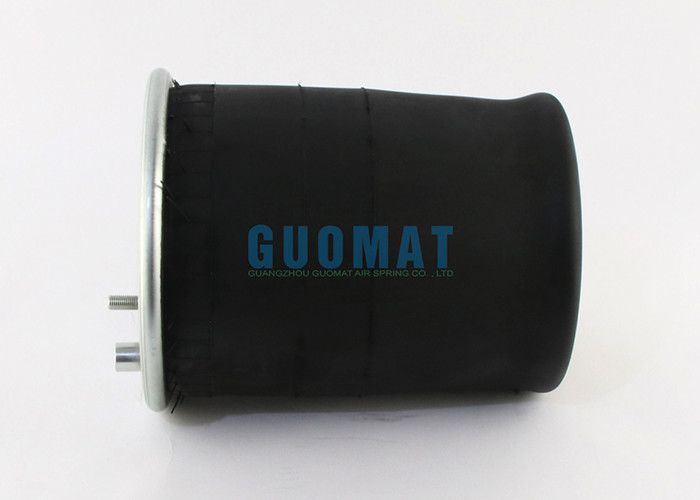

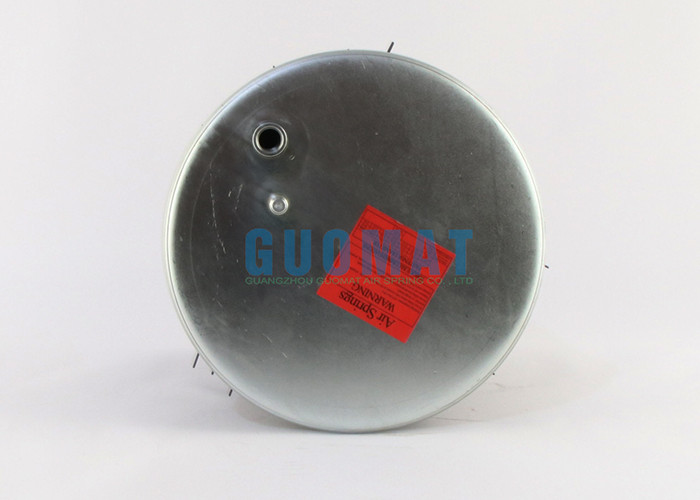

4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035

Name: 4884N1P064884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035
Brand: GUOMAT
Price: 79.9 USD

4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 Manufactures

Brand Name : GUOMAT

Model Number : 1T6047

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6pcs

Price : $79.9-99.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Product Name : Truck Air Ride Spring

Sample : Available

Warranty : 1 Year

Material : Rubber+Steel

MOQ : 10 Pcs

Contitech : 4884N1P06

Position : Truck Air Suspension

MAN : 81.43600.6035

Contact Now

Contitech Air Spring 4884N1P06/4884 N1 P06 Truck Suspension Shock Absorber MAN 81436006035

Product Details

Truck suspension air springs are a type of suspension system that uses rubber bags that are filled with air to support a vehicle's weight and absorb shocks and vibration from the road. They are commonly used on trucks and other heavy-duty vehicles to provide a smoother and more comfortable ride while also improving handling and stability. Air springs can also be adjusted to change the height and stiffness of the suspension, making them a versatile and flexible solution for a wide range of vehicle applications.

OEM Number
OEM Contitech: 4884N1P06
OEM Contitech: 4884 N1P06
OEM Contitech: 4884 N1 P06
OEM Contitech: 4884n1p06
OEM Airtech: 34884K
OEM Blacktech: RML 75995 C
OEM Keva: 54884
OEM Connect: MD 14884K
OEM Vibracoustic: V1DF19B-1
OEM Vibracoustic: V1 DF 19 B-1
OEM Airfren: 2048846CM
OEM Airfren: 20.4884.6CM
OEM Airfren: 20 4884 6CM
OEM DT: 3.66423
OEM Templin: 04.010.6200.080
OEM Templin: 04 010 6200 080
OEM MAN: 81.43600.6035
OEM MAN: 81436006035
OEM MAN: 81 43600 6035

GUOMAT 1T6047 Rubber Truck Air Spring Technical Data

Top Cover Plate Diameter	262mm
Air Inlet	M16X1.5
Bolt/Stud	M12X1.5
Distance Between Air Inlet and Bolt/Stud	84mm
Base Width	262mm
Bolt/Stud on the Base	M18
Rubber Bellow Natural Diameter	270mm
Piston Width	200mm
Piston Height	130mm

For MAN Truck Suspension Air Shock

MAN	CONTITECH
81.43601.0152	4884N1P01
81.43601.0151	4882N1P01
81.4301.0153	4883N1P01
81.43600.6044	4885N1P02
81.43600.6035	4884N1P06
81.43600.6037	4883N1P06
81.43601.6036	4882N1P05
81.43600.6046	4886NP01

Installing Rolling Lobe Air Spring with Top Plate

Fit the top crimping plate of theair spring to the chassis / frame of the vehicle. Press the bottom bead into an oval shape and push the bottom clamping plate through.
Align the bottom clamping plate and the piston to coincide with the hole pattern of the axles and stick the bottom clamping plate in the piston holes.
Screw the bottom clamping plate tightly onto the piston (if necessary secure the air spring with another person’s help to prevent it from twisting, or tighten prior to final mounting).
Mount the piston on the vehicle axle, inflate the air spring and lower vehicle. The rolling lobe air spring is now fitted and will automatically roll onto the piston.
