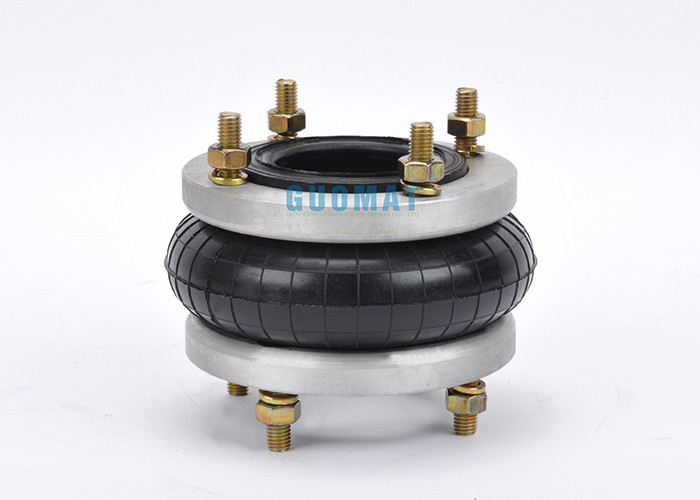

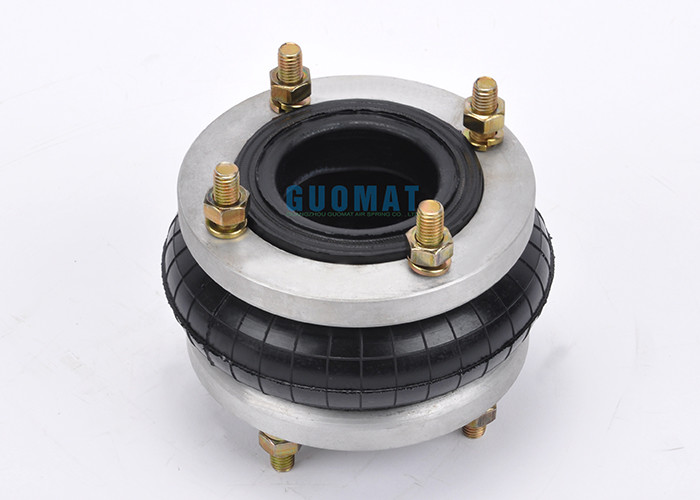

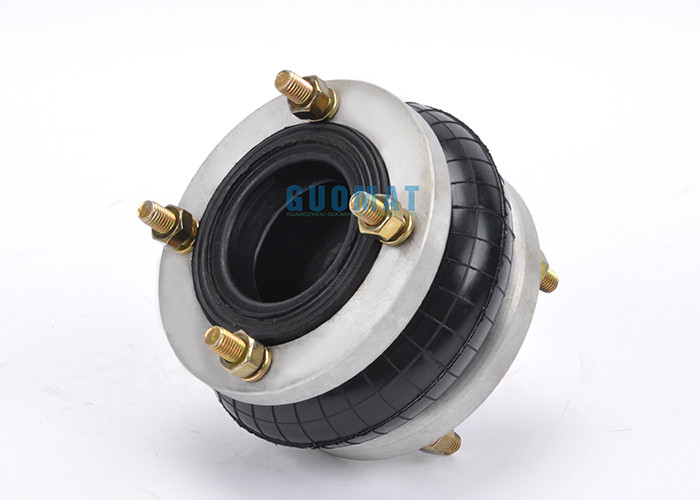

150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension

Brand Name : GUOMAT

Model Number : 150076H-1

Certification : ISO/TS16949:2009

Place of Origin : GuangDong, China

MOQ : 6PCS

Price : $49.9-59.9/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : Strong Carton Box Or As Customers Need

Keywords : Air Spring/Airbag/Air Suspension

Warranty : 1 Year/12Months

Spring Material : Rubber And Iron

Position : Rear/Front

Packing : Strong Brown Carton Box

Condition : 100% Brand-new

Operation : Gas-filled

Plate Diameter : 133mm

Contact Now

150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension

Product Details

150076H-1 Technical Detailed Data

Cover Plate
Top Cover Plate Diameter:133mm
Bottom Cover Plate Diameter:133mm

Gas Hole/Air Inlet/Air Hole
Gas Hole/Air Inlet /Air Hole:---

Rurrber Bellows
Rubber Bellows MAX Diameter:160mm
The Working Stroke:MAX 85 mm to MIN 46mm
Maximum Height:85mm
Minimum Height:46mm
Stroke Height:39mm

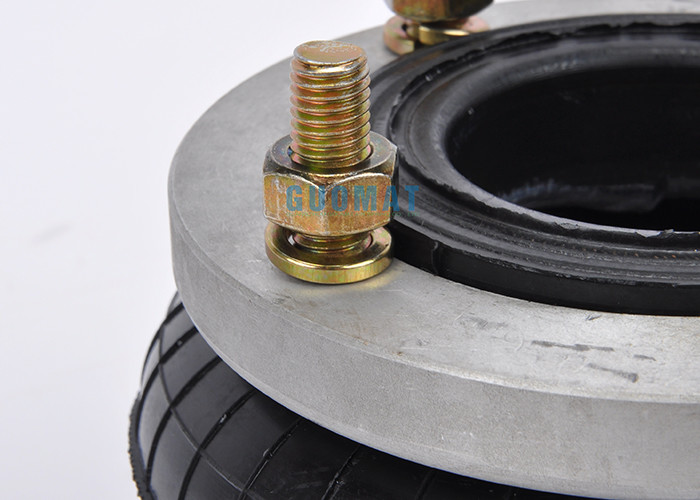

Blind Nut
Top Cover Plate Screw(Nut):4pcsxM10
Bottom Cover Plate Screw(Nut):4pcsxM10
Top Cover Plate Screw(Nut) Distance:109mm
Bottom Cover Plate Screw(Nut) Distance:109mm

150076H-1 Technical Parameters Table

Bearing Capacity
(Kg)

 Inflation Pressure 0.2Mpa 0.3Mpa 0.4Mpa 0.5Mpa 0.6Mpa
Installation Height
45 (mm) 436 579 718 860 1008
55 (mm) 299 428 570 700 830
65 (mm) 226 335 451 565 670
76 (mm) 164 258 344 435 526
85 (mm) 122 190 254 330 399
95 (mm) 58 94 133 174 220
Stiffness And Frequency At Design Height Vertical Stiffness (Kg/cm) 107 150 187 231 265
Natural frequency Hz 4.05 3.82 3.69 3.65 3.55
cpm 243 229 221 219 213

Bearing Capacity
(Kg)

 Inflation Pressure 0.7Mpa 0.8Mpa

0.7Mpa
Volume(dm3)
Installation Height
45 (mm) 1155 1301 0.37
55 (mm) 963 1088 0.46
65 (mm) 782 906 0.57
76 (mm) 621 720 0.67
85 (mm) 475 544 0.75
95 (mm) 263 308 0.87
Stiffness And Frequency At Design Height Vertical Stiffness (Kg/cm) 303 319
Natural frequency Hz 3.50 3.33
cpm 210 199


About Air Spring With Flange
Flange connection Flange connection is to use a flange at both ends of the valve to connect with the flange on the pipeline by installing bolts on the pipeline. Flange connection is the most common form of valve connection.

150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension150076H-1 Industrial Air Spring With Flange 0.8Mpa Single Convoluted Air Suspension

Company Profile

Guangzhou Guomat Air Spring Co., Ltd.

1.We focus on the production of air spring has been 15 years which is Chinese the largest manufacturer of air springs.
2.We have Truck air spring,Bus air spring ,Car Suspension air spring , Industrial air spring and Air Suspension Compressor .
3.We will reply you for your inquiry in 24 hours.
4.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
