GUOMAT 1B4.5X1 Industrial Air Spring Norgren Pm/31041 Compact Air Bellows W01-R58-4050
Cross OEM Number
GUOMAT Number: 1B4.5X1
Firestone Number: W01-R58-4050
Firestone Number: WO1-R58-4050
Firestone Number: W01 R58 4050
Firestone Number: WO1 R58 4050
Firestone Number: W01R584050
Firestone Number: WO1R584050
Contitech Number: FS44-5
Contitech Number: FS 44-5
Contitech Number: FS44-5 DI
Contitech Number: FS 44-5 DI
Contitech Number: FS44-5 DI G3/8 CR
Contitech Number: FS 44-5 DI G3/8 CR
DUNLOP Number: SP2334
DUNLOP Number: SP 2334
Norgren Number: P/M31041
Norgren Number: P/M 31041
Norgren Number: P/m31041
Norgren Number: P/m 31041
Technical Data
Number of Bellows: 1
Rubber Bellow Diameter: 114mm
The Width Top and Bottom Cover Plate: 110mm
Air Hole: G3/8
The Stroke: 45mm
Weight: 0.75KG
Medium: Compressed Air, Non-lubricated
Operation: Single Acting
Operating pressure: 8 Bar Maximum
Norgren Standard Models
| Model | Nominal Ø(inch) X Convolutions | Maximum Stroke(mm) | Port Size |
| P/M31021 | 23/4''x1 | 20 | G1/4 |
| P/M31022 | 23/4''x2 | 45 | G1/4 |
| P/M31023 | 23/4''x3 | 65 | G1/4 |
| P/M31041 | 41/2''x1 | 40 | G3/8 |
| P/M31042 | 41/2''x2 | 80 | G3/8 |
| P/M31061 | 6''x1 | 55 | G1/2 |
| P/M31062 | 6''x2 | 115 | G1/2 |
| P/M31081 | 8''x1 | 95 | G3/4 |
| P/M31082 | 8''x2 | 185 | G3/4 |
| P/M31091 | 91/4''x1 | 105 | G3/4 |
| P/M31092 | 91/4''x2 | 230 | G3/4 |
| P/M31121 | 12''x1 | 105 | G3/4 |
| P/M31122 | 12''x2 | 215 | G3/4 |
| P/M31123 | 12''x3 | 315 | G3/4 |
What is Our Customer Service Concept?
Respect customers, understand customers, continuously improve the products and services expected by customers, and be the customer's eternal partner. This is the service concept that GUOMAT has always adhered to.
Mr. Dmitry is a Russian auto parts dealer, and our friendly cooperation begins with an email. One day, I was honored to receive an inquiry email from Mr. Dmitry. After carefully understanding his product requirements, I immediately made a detailed quotation list and sent it to him. Due to the large number of product models involved, I don't dare to slack off at all and patiently communicate with him and answer customers' questions.
During his introduction to Mr. Dmitry to the company and products, he learned about GUOMAT's production and sales strength, and felt an excellent customer service attitude, so much interest and trust in us. A few months after our communication, he decided to place a sample order to us. This will be the beginning of our cooperation, and I hope we can establish a long-term cooperative relationship.
Since this is our first cooperation, we have been following up on this order in order to give customers more confidence. At the same time, we will also tell Mr. Dmitry of all the progress. We have carried out strict checks from stock to shipment, such as 100% testing before packaging. We all pack according to strict export transportation, and carefully affix product labels and marks. Then transport it to the warehouse in time and start shipping to the customer.
In our interaction with customers, GUOMAT will patiently receive services for each customer, respond to customer inquiries in a timely manner, and patiently answer customer questions. Starting from the actual needs of customers, provide customers with truly valuable services and help customers better use the products. Customers are buyers of our products, advocates and witnesses of GUOMAT products. Customers put forward new requirements for us, which is a beacon on our way forward. We should pay attention to the feedback provided by each customer.

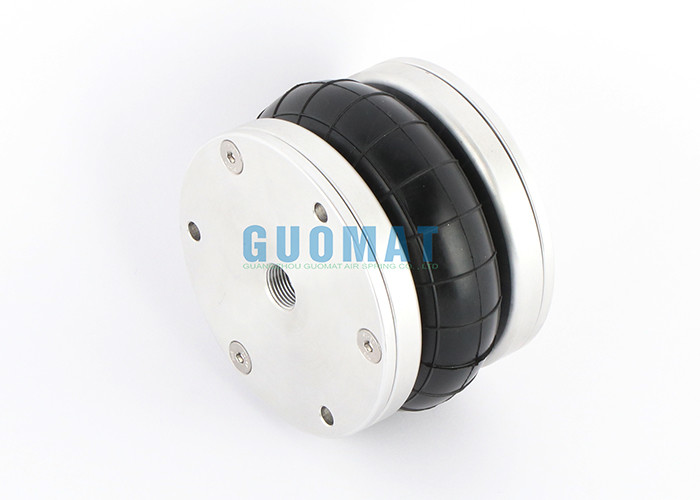

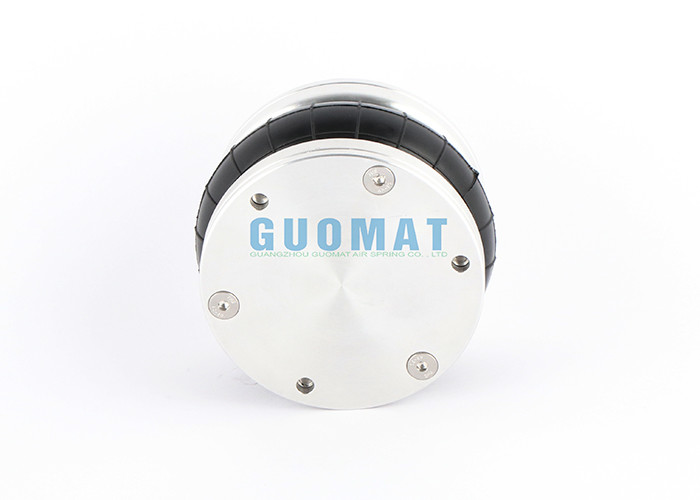

The Real Pictures
