Guomat 1B8X4 Single Convoluted Air Suspension Air Spring For Industrial Machine Reduce Shock
Product Description
FIRESTONE Number: W01-358-7564
FIRESTONE Number: W01 358 7564
FIRESTONE Number: W013587564
FIRESTONE Part Number: WO1-358-7564
FIRESTONE Part Number: WO1 358 7564
FIRESTONE Part Number: WO13587564
GOODYEAR Part Number: 1B8-550
GOODYEAR Part Number: 1B8 550
GOODYEAR Part Number: 1B 8-550
CONTITECH Part Number: FS120-10
CONTITECH Part Number: FS 120-10
CONTITECH Part Number: FS120 10
Original Equipment Manufacturer Number
| Firestone | w01-358-7564 | Firestone | w01 358 7564 |
| Firestone | w013587564 | Goodyear | 1b8-550 |
| Goodyear | 1b8 550 | Goodyear | 1b 8-550 |
| Contitech | fs120-10 | Contitech | fs 120-10 |
| Contitech | fs 12010 | | |
Technical Data
| Working Temperature | -40°C bis +70°C |
| Failure Testing | ≥3 millions |
| Top Cover Plate Diameter | 135mm |
| Bottom Cover Plate Diameter | 135mm |
| Gas Hole / Air inlet | 1/4NPTF |
| Rubber Bellows MAX Diameter | 230mm |
| The Working Stroke | MAX 140 mm to MIN 50 mm |
| Top Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
| Screw Center Distance of Top Cover Plate | 70mm |
| Screw Center Distance of Bottom Cover Plate | 70mm |
Air Spring Industry-Specific Applications
►Lift Tables
Automotive lift
Pallet lift station
Parts cage lift
►Robotics
Pick & Place
Offset load stabilizer
End of arm tooling
►Packaging
Conveyor Systems
Conveyor stop
Transfer station
►Forestry & Timber
Debarking Machine
Apply force at angle
Adjusts for vibrations
►Heavy Industry
Cement Brick Making
Dirty environment
Double-acting
No clevis needed
►Pulp & Paper
Web Positioner
Chemical resistant
High temperature
Packaging Details
| Item | Item No. | N.W(kg) | G.W(kg) | Packing Length(cm) | Packing Width(cm) | Packing Height(cm) | Qty |
| Air Spring Bag | 1B8X4 | 2.018 | 6.434 | 24 | 24 | 24 | 3 |

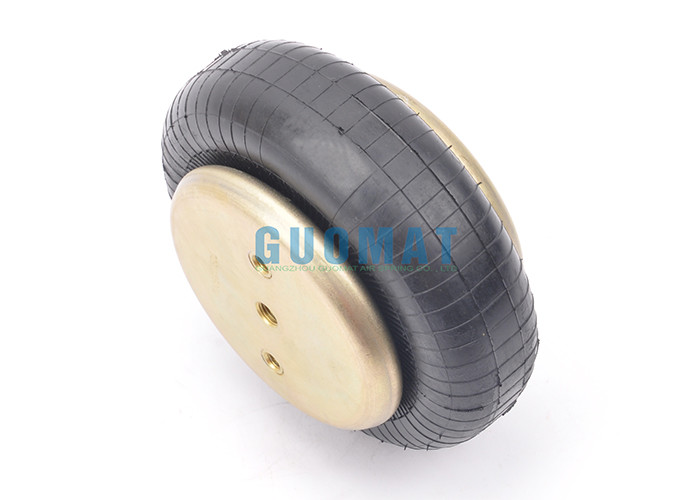

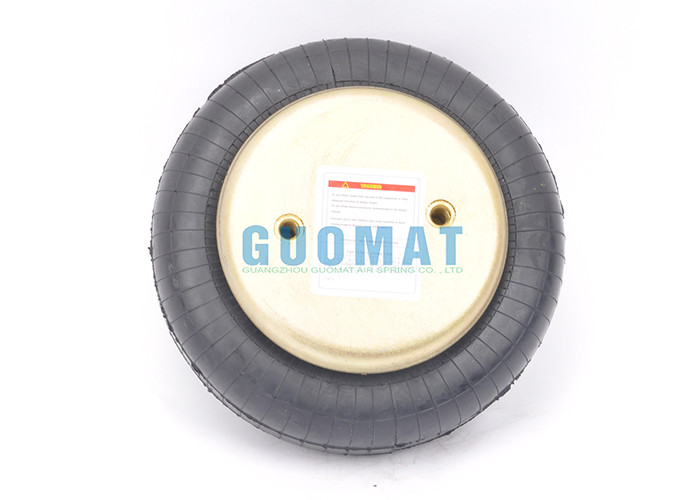

The Real Pictures of Firestone Rubber Air Bags
