Natural Rubber Single Convoluted Air Spring 1B53014-1/4 Contitech Air Bellow FS 530-14
Product Description
| Item | Rubber Bellows Industrial Air Spring |
| Brand | GUOMAT/Neutral |
| Model Number | 1B53014 |
| Material | Rubber And Metal |
| Warranty | 1 Year |
| MOQ | 1 PCS If We Have Stock |
| Package | (1) Bubble Bag And Brown Carton (2) Customer Require Packaging (3) Normal Exported Package |
| Delivery Time | 2-8 Working Days |
| Payment | T/T, L/C, PayPal, Western Union |
| After Service | (1) Examination Before Shipment
(2) Follow Up The Customers' Feedback |
| Main products we sell | Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump |
GUOMAT 1B53014 Original Equipment Manufacturer
Spare Part Number : 1B530-14
Contitech Part Number : FS530-14 CI 1/4NPT
Contitech Part Number : FS 530-14 CI 1/4NPT
Contitech Part Number : FS530-14 CI
Contitech Part Number : FS 530-14 CI
Firestone Part Number: W01-358-7091
Firestone Part Number: W013587091
Firestone Part Number: W01 358 7091
Firestone Part Number: w01-358-7091
Firestone Part Number: w013587091
Firestone Part Number: w01 358 7091
Contitech Single Suspension Spring Technical Data
Nut/Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC
Screw and Air Inlet Distance of Top Cover Plate : 158.8mm
Bottom Cover Plate Screw (Nut) Tooth : 4x3/8-16UNC
Screw and Air Inlet Distance of Bottom Cover Plate : 158.8mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 NPT
Cover Plate
Top Cover Plate Diameter : 289mm
Bottom Cover Plate Diameter : 289mm
Rubber Bellow
Rubber Bellows MAX Diameter : 406mm
The Working Stroke : MAX 160 mm to MIN 81 mm
Maximum Height : 160mm
Minimum Height : 81mm
Compression Height : 79mm
Our Advantage
1. Rich shock absorption products (trucks, cars, buses, industrial machinery and equipment, etc.)
2. Accept OEM orders
3. Affordable, safe and efficient logistics services
4. Flexible payment methods
5. Guaranteed Warranty
Our Service
1. Reply your inquiry within 24 working hours
5. Prompt delivery
6. Good after-sale service
7. Ex-factory price
Installation of the air spring
The inert gas is injected into the spring, and the elastic function is produced by the piston. The product does not need external power, the lifting force is stable, and it can be freely stretched. When installing, pay attention to the following points:
1. The piston rod of the gas spring must be installed in the downward position and must not be installed upside down, which can reduce friction and ensure the best damping quality and cushioning performance.
2. Determining the installation position of the fulcrum is the guarantee that the gas spring can work correctly. The gas spring must be installed in the correct way, that is, when it is closed, let it move over the center line of the structure, otherwise the gas spring will often automatically push the door open.
3. The gas spring should not be subjected to tilting force or lateral force during operation. Not to be used as a handrail.
4. In order to ensure the reliability of the seal, the surface of the piston rod must not be damaged, and it is strictly forbidden to apply paint and chemical substances on the piston rod. It is also not allowed to install the gas spring in the desired position before spraying and painting.
5. The gas spring is a high-pressure product, and it is strictly forbidden to analyze, bake, or touch it at will.

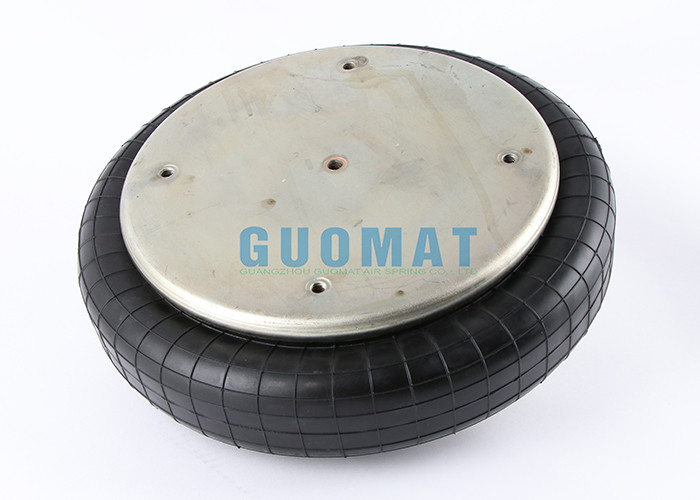

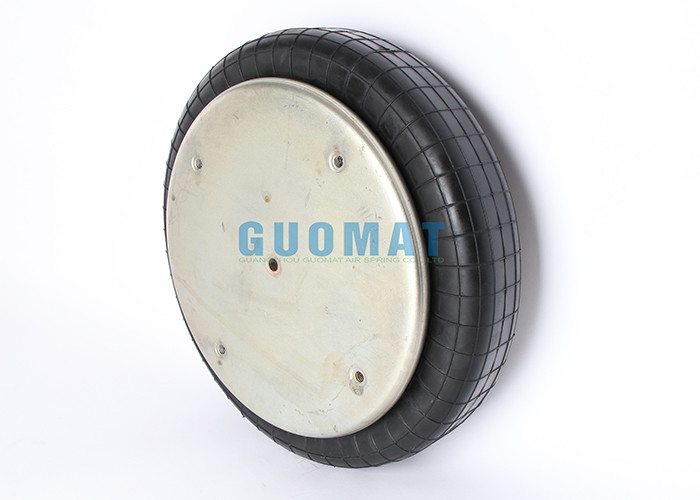

Product Images
