Single Convoluted Industrial Air Spring Bags Phoenix SP 1 B 07/SP1B07 G1/4 Air Inlet
Product Description
| GUOMAT NO. | 1B5022 |
| Item Name | Convoluted Air Spring |
| Phoenix | SP1B07 |
| OEM NO. | S P 1 B 07 |
| Cross NO. | SP 1 B 07 |
| MOQ | 10 Pieces |
| Packing | Carton or Pallet |
| Delivery Time | 3-7 Working Days |
| Payment | L/C,T/T,Western Union,PayPal |
Bellow No.1B120-9 Detailed Technical Parameters
♦Cover Plate
Top Cover Plate Diameter: 135mm
Bottom Cover Plate Diameter: 135mm
♦Gas Hole/Air Inlet/Air Fitting
Air Hole: G1/4
♦Threaded Hole
Top Cover Plate Threaded Hole: 2 Pieces XM8X1.25
Distance Between Threaded Holes in Top Cover Plate: 53mm
Bottom Cover Plate Threaded Hole: 2 Pieces XM8X1.25
Distance Between Threaded Holes in TBootom Cover Plate: 53mm
Distance Air Hole Between Threaded Hole: 26mm
♦Rubber Bellow
Rubber Bellows MAX Diameter: MAX .215mm
The Working Stroke: MIN 50-MAX 115mm
Instructions for the Use of Rubber Air Springs
Warning
Do not inflate the air spring when it is not installed, unless the product is firmly installed in a suitable structure with a maximum pressure of 7 pressures, otherwise there is a risk of product damage or personal injury
About Storage
The air spring should be placed at room temperature in a cool and dry place
Features
The air spring is made of high-quality spring materials, and its good dynamic performance ensures that the air spring is maintenance-free and has a long service life
Chemical Resistance
- Wide operating temperature range from -53°C to 70°C
- Oil-resistant
- Anti-dust
- Alkaline and acid resistant cleaner
- Environmental friendly
- Ozone resistant
Air Springs are not Resistant to the Following Substances
- The Solvent
- Hydraulic Oil
- Grease
Phoenix SP-Type Convoluted Air Spring
| SP 1 B 04 | SP 1 B 05 | SP 1 B 07 | SP 1 B 12 |
| SP 1 B 22 | SP 1 B 34 | SP 2 B 05 R-a | SP 2 B 07R |
| SP 2 B 12 R | SP 2 B 12 R-1 | SP 2 B 12 R-2 | SP 2 B 12 R-3 |
| SP 2 B 22 R | SP 2 B 34 R | SP 2 B 34 R-b | 2B 07 R |
| Package | Shipping |
| 1. Our packing is neutral packing or according to customer's requirement.
2. Label the item and the carton with the product.
3. If there are many goods, they will generally be packed into pallets. | 1. The closest to us is Guangzhou Huangpu Port.
2. Trade terms: FOB, CIF, etc.
3. We will follow up until you pick up the goods |

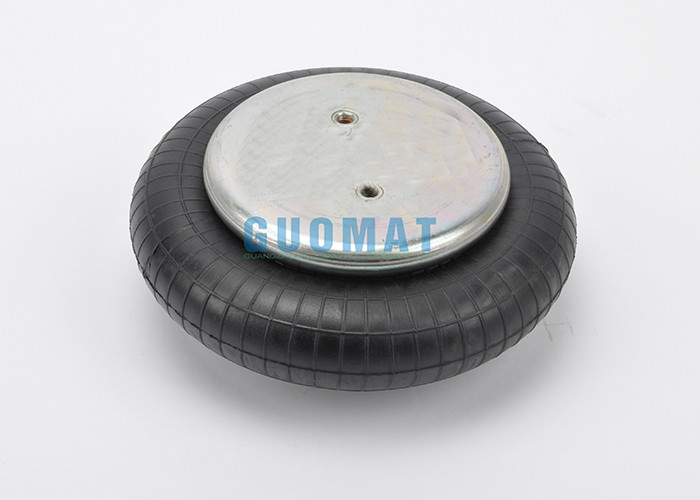

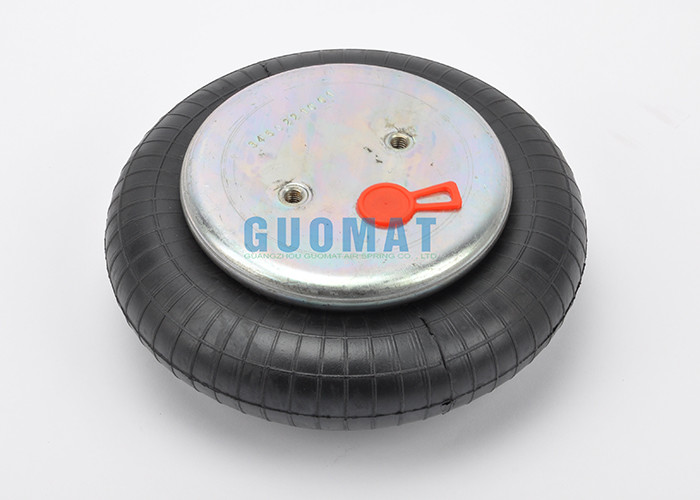

Product Images of Phoenix SP1B07 Air Rubber Air Spring
