2 Convoluted Industrial Air Spring 6x2 Assembly Air Bag Firestone W01-R58-4070 Dunlop SP2917 Bellows Actuator

6x2 Assembly Air Bag Firestone W01-R58-4070 Dunlop SP2917 Air Springs Bellows Actuator

Product Description

Air Spring 6 x 2 Series

FIRESTONE : W01-R58-4070
FIRESTONE : W01R584070
FIRESTONE : W01 R58 4070
FIRESTONE : W01/R58/4070
FIRESTONE : w01-r58-4070

DUNLOP : SP2917
DUNLOP : SP 2917
DUNLOP : SP/2917

NORGREN : PM 31062
NORGREN : PM31062
NORGREN : PM/31062

The Specification of 6x2 Air Spring Actuator

Product Series : Double Convoluted Assembly
Nominal Diameter : 6 (inch)
Number of Convolutions : 2
Port Connection : G1/2
Maximum Operating Pressure : 8 bar
Top Cover Diameter(Width) : 153.5mm
Bottom Cover Diameter(Width) : 153.5mm
Rubber Bellow MAX Diameter : 175mm
Installation Height Minimum : 80mm
Installation Height Maximum : 195mm
The Working Stroke : 115mm
Top Cover Screw (Nut) Teeth : 4XM8
Bottom Cover Screw(Nut) Teeth : 4XM8
Material Cover Plate : Aluminum

This is a compact and easy to install pneumatic bellows and is ideal for short stroke high pressure applications. The working stroke is 80 cm to 195 cm. Our air springs are made of high-quality materials for durability and high shock absorption. The W01-R58-4070 industrial air spring is suitable for operating environments from -40 to 70°C.

Air springs are used to elastically connect machines and equipment that generate shocks and vibrations that are transmitted through the foundation to the environment (e.g. textile machines, conveyor belts, hammers, forging presses, etc.). They are ideal for isolating laboratory instruments from vibration. They can also be used to hang truck trailers and caravans. They are used in pneumatic lifts, for example in auto repair shops.

Product Picture

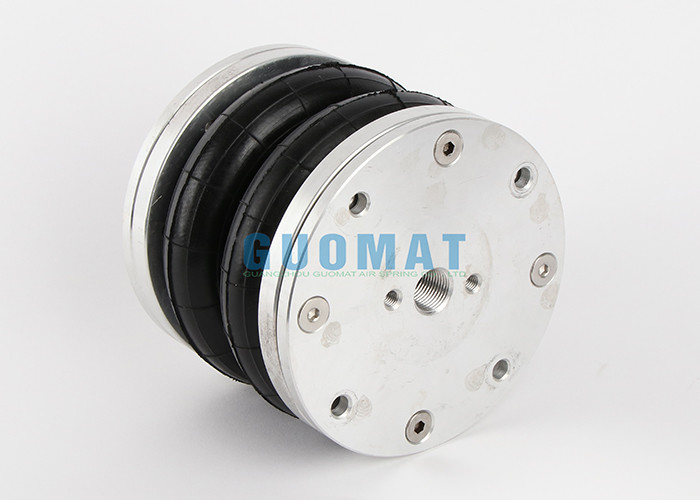

2 Convoluted Industrial Air Spring

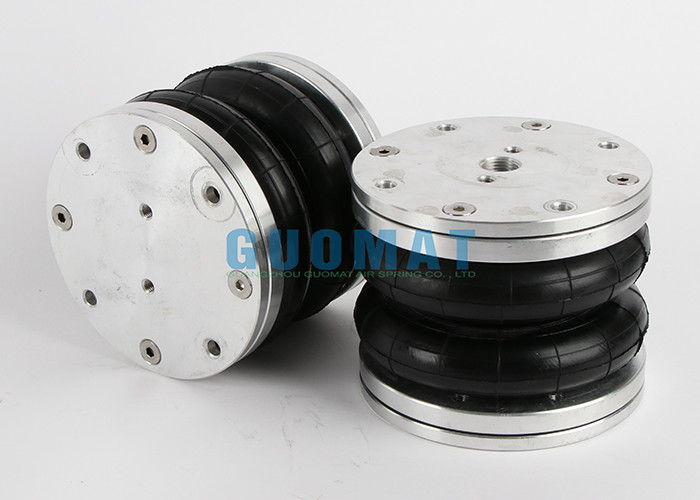

Industrial Air Spring W01-R58-4070
