Firestone W01-R58-4055 Flange Connection Air Suspension Spring Dunlop SP1490/SP 918
Product Description
Product Type : Air Spring With Flange
Material : Rubber+Aluminum+Steel
Warranty : 12 Months
Color : Black
Place of Origin : GuangDong , China
Certification : ISO/TS16949:2009
Packing : Neutral Packing
MOQ : 1 Pcs
Quality : High-Quality
Position : Industrial Machine
Payment : T/T, Western Union, L/C and PayPal
Delivery Time : 2-8 working day
Technical Data
Cover Plate
Top Cover Plate Diameter : 184mm
Screw Center Distance of Top Cover Plate : 156mm
Bottom Cover Plate Diameter : 184mm
Screw Center Distance of bottom Cover Plate : 156mm |
Nut/Blind Nut
Top Cover Plate Screw(Nut) Tooth : 4xM10X1.5
Bottom Cover Plate Screw (Nut) Tooth : 4xM10X1.5 |
Gas Hole/Air Inlet/Air Fitting
Gas Hole:1/2 BSP |
Rubber Bellow
Rubber Bellow MAX Diameter : 215
Minimum Height : 72mm |
Manufacturer OEM Number
FIRESTONE : W01-R58-4055
FIRESTONE : W01R584055
FIRESTONE : 4055
FIRESTONE : W01/R58/4055
FIRESTONE : w01-r58-4055
FIRESTONE : w01r584055
FIRESTONE : 8x2 , 8''x2 , 8'x2
FRUEHAUF : F48054
FRUEHAUF : M80A04
FRUEHAUF : F 48054
FRUEHAUF : M 80A04
LOHR : A06030604
LOHR : A 06030604
SAMRO : H2500021
SAMRO : H2500188
SAMRO : H 2500021
SAMRO : H 2500188
SAMRO : H 250 0021
SAMRO : H 250 0188
SISU TRUCK : 1531110600
SISU TRUCK : 153 111 0600
DUNLOP : SP1490
DUNLOP : SP918
DUNLOP : SP 1490
DUNLOP : SP 918
Without flange smooth cover plate air spring
Firestone : W01-R58-4045
Firestone : W01R584045
Firestone : w01-r58-4045
Firestone : w01r584045
Firestone :8x2
Dunlop : SP 253
Dunlop : SP253
Air spring application---punch equipment
With the development of industrial modernization, the processing and manufacturing of factories will be applied to punching equipment, which brings great economic benefits to our industrial development.
Of course, general mechanical equipment will have many problems, punching equipment is no exception. When the punching equipment is working, there will be strong vibration and noise. These vibrations and noises will not only cause damage to the machinery and equipment, but also affect the health of the staff. They cannot pass the inspection standards of the environmental protection department. These problems are not conducive to Sustainability of the factory. At this time, the air spring appeared, which is a high-efficiency damping component that charges air into the interior. It is composed of upper and lower cover plates and a rubber airbag in the middle. Install the air spring under the punching equipment and block it from the ground. When the punching equipment is working, the air spring reduces the vibration of the machine tool to the ground, so the noise is also reduced. At the same time, the service life of the equipment is prolonged and the wear rate is reduced.

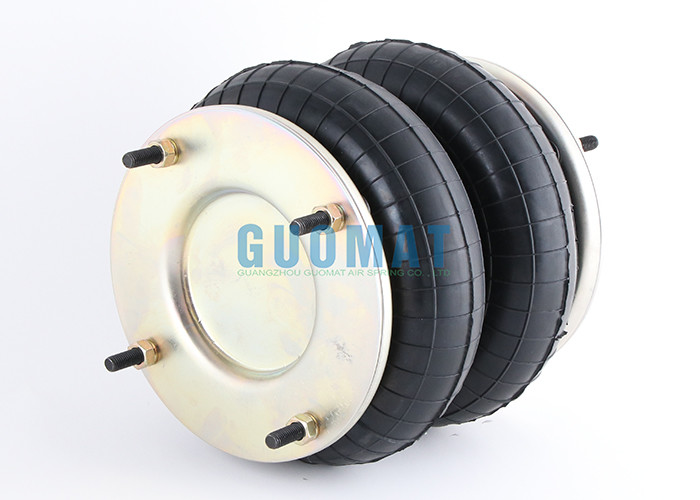

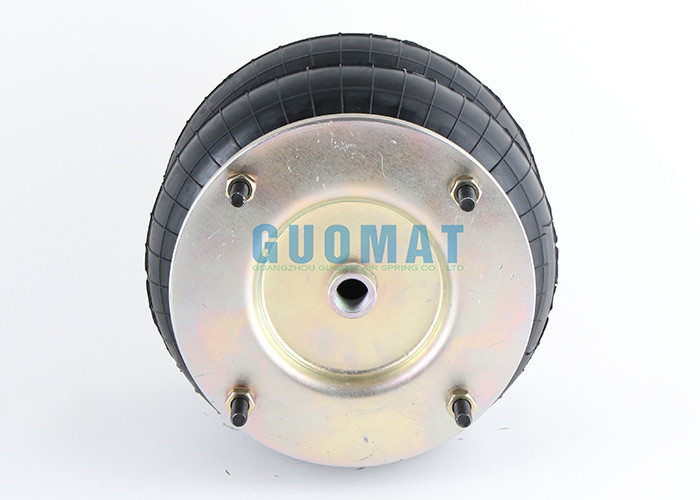

Product Picture of Dunlop SP1490 Air Bag
