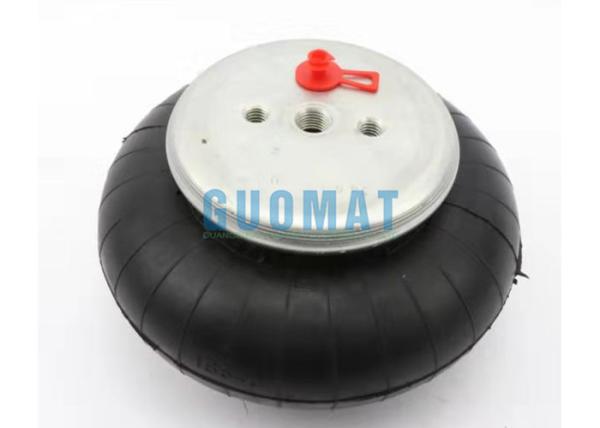

Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540

Brand Name : GUOMAT

Model Number : 1B5021

Certification : ISO/TS16949:2009

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T, Western Union,Paypal or Others

Supply Ability : 1000pcs/week

Delivery Time : 2-8 work days

Packaging Details : strong carton box or as customers need

Material : Rubber Steel

GUOMAT : 1B5021

Warranty : 1 Year

Weight : 5.0 kg

Other names : Air Spring Bags

Pressure Ability : 0.2-0.8 M Pa

Bellow No. : 1B 7-540

Contact Now

Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540

Specifications and Technical Data

GUOMAT Part Number:1B5021

Operating Temperature: 57Cº to -54Cº

Compressed Height: 90mm

Top Cover Plate Diameter: 115mm

Bottom Cover Plate Diameter: 115mm

Distance Gas Hole Between Nut 22.25 mm

Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC

The Working Stroke : MAX 140 mm to MIN 50 mm

Gas Hole / Air inlet : 1/4NPTF

aximum Diameter @ 100 PSIG (mm) 210.82 Short Description W01-358-7451, W013587451, WO1-358-7451, WO13587451
Maximum Height (mm) 140 Manufacturer Part Number W013587451
Maximum Stroke (mm) 76.2 Manufacturer Firestone Industrial
Minimum Usable Height (mm) 50 Style Number 110B
1 Inch (pounds) 2090 Style Shape Single Convolution
3 Inch (pounds) 1030 Natural Frequency (@80 psig) (cpm) 162
Bead plate Type 1 400 CPM % 80.2
Blind Nut Centers (mm) 44.45 800 CPM % 95.7
Design Height 4.5 1500 CPM % 98.8
40 psig (pounds) 650 Maximum Stroke (pounds) 940
60 psig (pounds) 1010 Material 2-Ply Standard Cord
80 psig (pounds) 1390

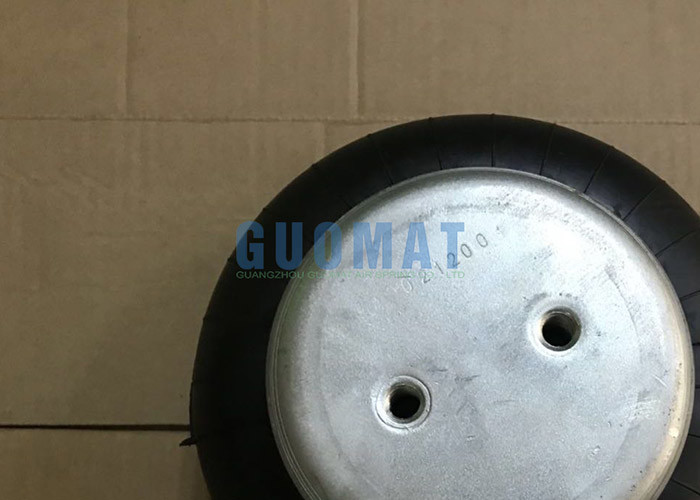

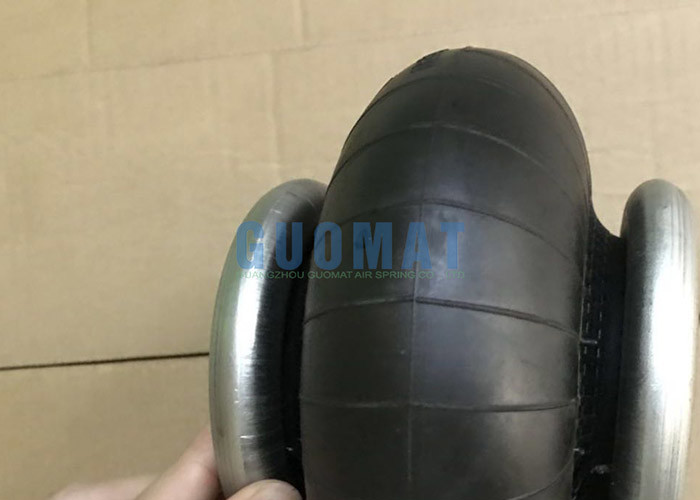

Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540Firestone W01-358-7451 One Convoluted Air Bags 1B5021 Bellow No.1B 7-540
