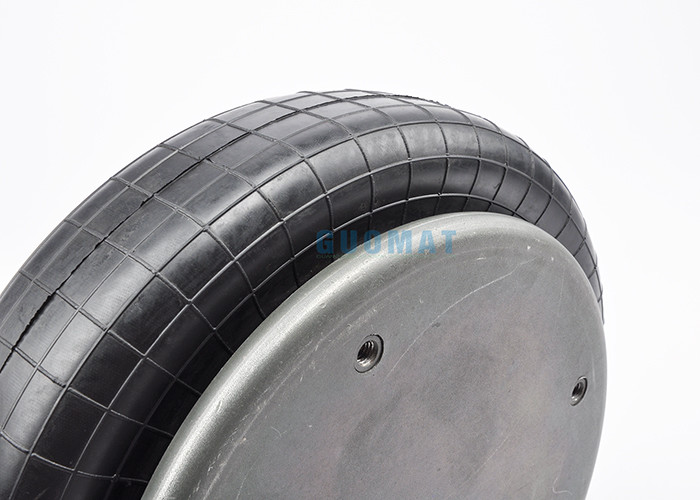

GUOMAT 1B53034 Refer Contitech Air Spring FS530-34 With 3/4 N P.T.F. Air Inlet
GUOMAT 1B53034 Specifications and Technical Data
Operating Temperature: 57Cº to -54Cº
GUOMAT NO.:1B53034
Cross NO.:FS 530-34
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm

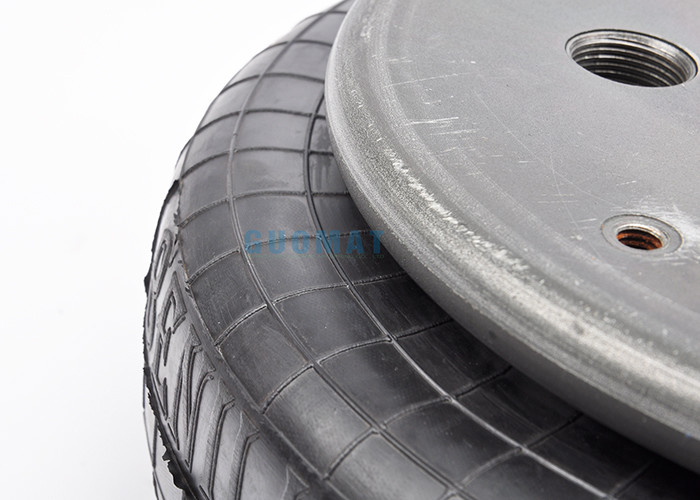

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| | | | | |
| 1B53034 | FS 530-34 | 51 | 420 | 134 |
| | | | | |
Description Of 1B53034:
Airbag isolation, there are two control methods. One is a group (usually 4 or 6) airbag single one-way valve packing, like a car tire, regular qi.
The other is through the control unit to adjust, connect the gas source, by adjusting the overall pressure of the same, to adjust the role of time monitoring, eliminating the need for human supervision.
Airbag isolation for the fluidized bed on the floor and other end-users with high isolation requirements is particularly important, in addition, the airbag isolation relative to the long spring steel travel, metal fatigue, noise, etc., long service life of the airbag, reduce noise and improve Fluidized bed equipment service life.
The 1B53034 is an industrial air spring for vibration isolation and pneumatic applications with removable pneumatic connections in a medium volume.

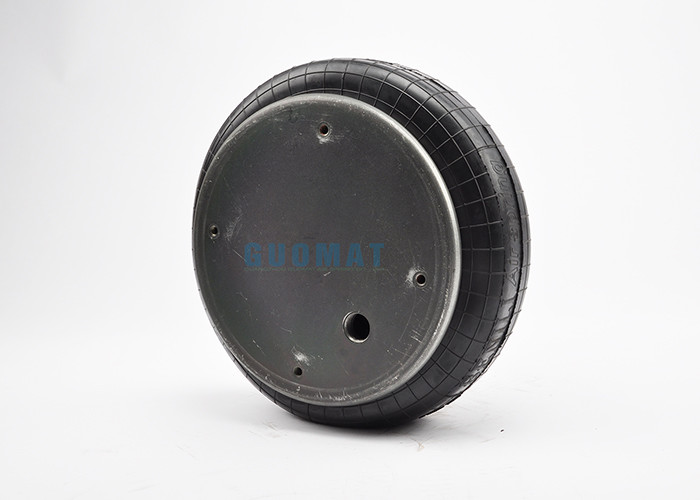

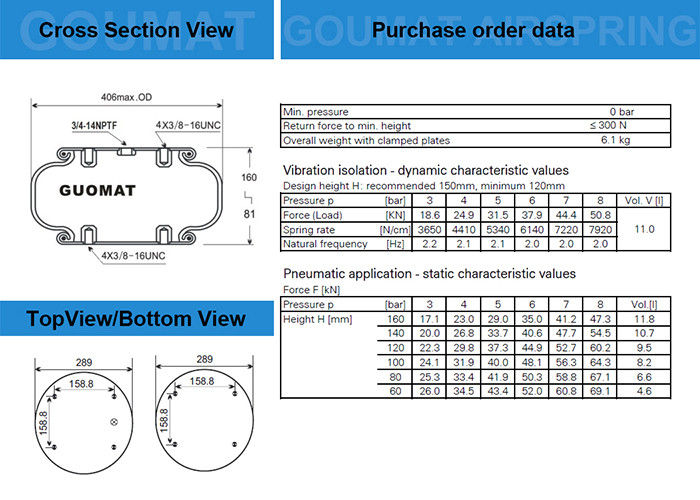

Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
