W01-358-7180 Industrial Air Spring Double Convoluted FD 330-22 2B12-425/311 578923309

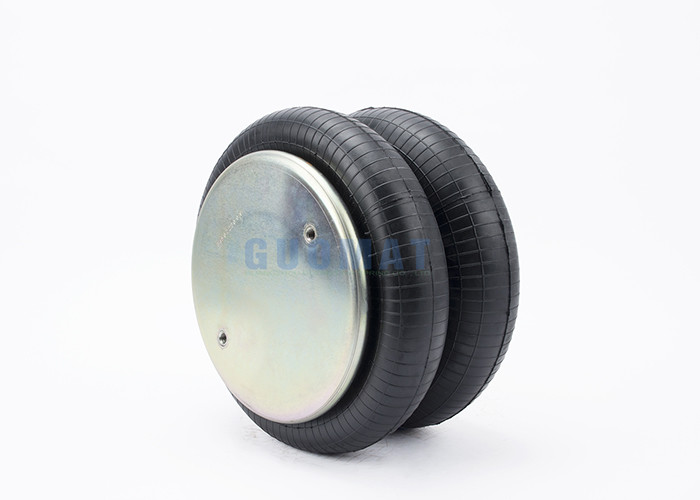

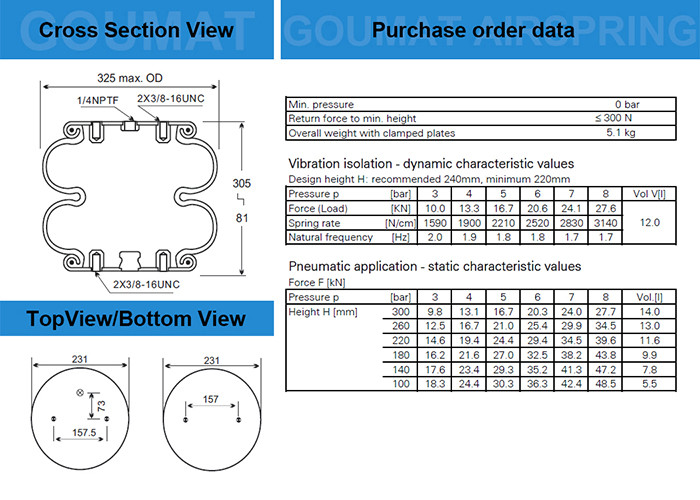

Technical Parameters of W01-358-7180
Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231 mm
Screw Center Distance 157 mm
Distance Gas Hole Between Nut 73 mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsX3/8-16UNC
Rubber Bellows MAX diameter 325 mm
The Stroke 81-305 mm
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114301 | AIRKRAFT 113333 | AIRKRAFT 113491 |
| FIRESTONE FLEX 22 | CONTITECH FD 330-22 313 | FIRESTONE W01-358-7184 |
| FIRESTONE W01 358 0226 | FIRESTONE W01 358 7400 | GOODYEAR 2B12-429 |
| 95.0037 | GOODYEAR 2B12-309 | GOODYEAR FLEX 578-92-3-309 |
| 95.0082 | GOODYEAR FLEX 578-92-3-309 | AIRKRAFT 113492 |
| GOODYEAR 556 2 3 8210 | TAURUS KF 222-7400 | FIRESTONE W01-358-7185 |
| PHOENIX 2B 22R | AIRKRAFT 113490 | GOODYEAR 2B12- 318 Goodyear Part # 2B12-311 Goodyear-Firestone Cross Reference‚ 2B12-425 Goodyear-Firestone Cross Reference‚ 2B12-437 Goodyear-Firestone Cross Reference |
| PIRELLI T22 88544 | CONTITECH FD 330-22 363 | GOODYEAR FLEX 578-92-3-309 |
| | FIRESTONE W01-358-7180 | |
| | GOODYEAR 2B12 425 | |
| | GOODYEAR FLEX 578-92-3-309 | |
Firestone: W01-358-7180/22
Contitech: FD 330-22 363
Goodyear: 2B12-425/311
Hendrickson : 1VA1816
: 578923309
Triangle : 6316/4363
Kwiklok/Todco(Jifflox)
Leland : Sc2075
Navistar : 1685179C1
EI Ride : 8030190
SAF Holland : 57007180
Watson&Chalinl : AS01541G/01881F
Vibracoustic : VSP2B22R7180
Ridewell : 1003587180C
Peerless : 0550 00001
| Cross-reference | | OE Manufacturer/Reference No. | |
| Firestone Style 22 | 22 | Manufacturer Original-part no. Model | Original-part no. |
| Firestone No. W01-358-7424 | W01-358-7424 | Dayton 354-7424 | 354-7424 , |
| FleetPride AS7424 | AS7424 | Hendrickson S-13043 | S-13043 |
| Goodyear 2B12-300 | 2B12-300 | Loadguard SC2024 | SC2024 |
| Goodyear Flex No. 578923309 | 578923309 | Navistar/Fleetrite 554785C1 | 554785C1 |
| Taurus 6316 | 6316 | R&S Truck 1090215 | 1090215 |
| Triangle AS-4327 | AS-4327 | SAF Holland 90557014 | 90557014 , |
| Vibracoustic V SP 2 B 22 R-7424 | V SP 2 B22 R-7424 | Sauer P10-755 | P10-755 |
| TRP AS74240 | AS74240 | Taurus AS214-7424 | AS214-7424 |
| Automann SP2B22R-7424 | SP2B22R-7424 | Watson & Chalin AS-0009 | AS-0009 |
| | | Brake & Wheel M3509 | M3509 |
| | | Granning 6421 | 6421 |
| | | Ridewell 1003587424C | 1003587424C |
| | | VOL-VO 3130504 | 3130504 |
Air spring Brand: ContiTech
Competitor/Brand ID: FD33022363
Firestone Air Spring Model Number: 22
Air spring Brand: Goodyear
Competitor/Brand ID: 2B12311
Firestone Air Spring Model Number: 22
Air spring Brand: Goodyear
Reference Number: 578923309
Competitor/Brand number: 2B12425
Firestone Air Spring Model Number: 22
Air Suspension Brand: Kwic Lock
Firestone air spring style: 22
Air Suspension Brand: Kwik Lok / Todco (Jifflox)
Firestone Airspring style: 22
Air Suspension Brand: Leland
Competitor/Brand number: SC2075
Firestone air spring style: 22
Air Suspension Brand: Navistar
Competitor/Brand ID: 1685179C1
Firestone air spring style: 22
Air Suspension Brand: SAF Netherlands
Competitor/Brand ID: 57007180
Firestone air spring style: 22
Air Suspension Brand: Peerless
Competitor/Brand ID: 5500001
Firestone air spring type: 22
Air Suspension Brand: Ridewell
Competitor/Brand ID: 1003587180C
Firestone air spring style: 22
Air Suspension Brand: Talbert
Firestone air spring style: 22
Air Suspension Brand: Watson & Chalin
Competitor/Brand number: AS01541G
Firestone air spring style: 22
Air Spring Brand: Triangle
Reference Number: 6316
Competitor/Brand ID: 4363
Firestone air spring style: 22
Air Spring Brand: Vibration
Competitor/Brand number: VSP2B22R7180
Firestone Air Spring Model Number: 22
Air Suspension Brand: EZ Crew
/Vendor number: 8030190
Firestone air spring style: 22
Air Suspension Brand: Hendrick
Firestone Air Spring Model Number: 22
Air Suspension Brand: Hendrickson
Competitor/Brand number: NA1816
Firestone air spring style: 22
Air Suspension Brand:
Henderson Truck Firestone Air Spring Style: 22
Firestone Trim: w013587180
The usal kinds of Double Convolution Air Springs
| Double Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 2B33022 | FD 330-22 | 75 | 340 | 230 |
| 2B33030 | FD 330-30 | 77 | 355 | 283 |
| 2B53022 | FD 530-22 | 77 | 400 | 233 |
| 2B53030 | FD 530-30 | 77 | 415 | 273 |
| 2B53035 | FD 530-35 | 77 | 420 | 313 |
| 2B96022 | FD 960-22 | 95 | 490 | 225 |
| 2B133025 | FD 1330-25 | 92 | 570 | 243 |
Style 22 Two Ply
Blind nuts, 1/4 BSP:W01-M58-6381;W01 M58 6381;W01M586381
Blind nuts, 1/4 BSP, bumper:W01-M58-6382;W01 M58 6382;W01M586382
Blind nuts, 3/4 BSP:W01-M58-6200;W01 M58 6200;W01M586200
Blind nuts, 3/4 BSP, bumper:W01-M58-6201;W01 M58 6201;W01M586201
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-7524;W01 M58 7524;W01M587524
Rubber bellows only:W01-358-0226;W01 358 0226;W013580226
Assembly weight (bead plate version, no bumper):5.8 kg.
Force to collapse to minimum height (@ 0 BAR):88.9 N.
Style 210 High Strength Con-struction
Blind nuts, 1/4 BSP:W01-M58-6212;W01 M58 6212;W01M586212
Blind nuts, 1/4 BSP, bumper:W01-M58-6213;W01 M58 6213;W01M586213
Blind nuts, 3/4 BSP:W01-M58-6210;W01 M58 6210;W01M586210
Countersunk steel bead rings,bolts, nuts, washers:W01-M58-6976;W01 M58 6976;W01M586976
Rubber bellows only:W01-358-7928;W01 358 7928;W013587928
Use in many applications including:
- Power source in direct-acting forming press (metal and plastics)
- Power source in compactors
- Mechanical coupling
- Power source in laminating plywood presses
- Granite slab positioners
- Pallet lifts
- The conveyor terminal block
- Lift actuators for diagnostic tables in hospitals
- Reciprocating shaft seal
- The shock absorber test system
- Underwater actuator for gate controls
- Washing equipment,
- Lumber positioner actuators in sawmills
- Actuators for concrete block machinery
- Mineral equipment air spring,
Other kinds of FD 330-22 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] |
| 80 psi | 100 psi | Min | MAX |
| FD 330 22 313 | FD 330-22 313 | 161016 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 318 | FD 330-22 318 | 161270 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 327 | FD 330-22 327 | 161029 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 331 | FD 330-22 331 | 161009 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 334 | FD 330-22 334 | 161271 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 337 | FD 330-22 337 | 161272 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 343 | FD 330-22 343 | 161273 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 346 | FD 330-22 346 | 161274 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 363 | FD 330-22 363 | 161275 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 364 | FD 330-22 364 | 161276 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 365 | FD 330-22 365 | 161277 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 366 | FD 330-22 366 | 161278 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 367 | FD 330-22 367 | 161279 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 368 | FD 330-22 368 | 161280 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 465 | FD 330-22 465 | 161281 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 471 | FD 330-22 471 | 161282 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
| FD 330 22 472 | FD 330-22 472 | 161283 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 500 | FD 330-22 500 | 161284 | 4200 | 5250 | 12.9 | 9.5 | 3 | 12 | 102 |
| FD 330 22 540 | FD 330-22 540 | 161285 | 4200 | 5250 | 12.9 | 9.5 | 4.1 | 12 | 102 |
